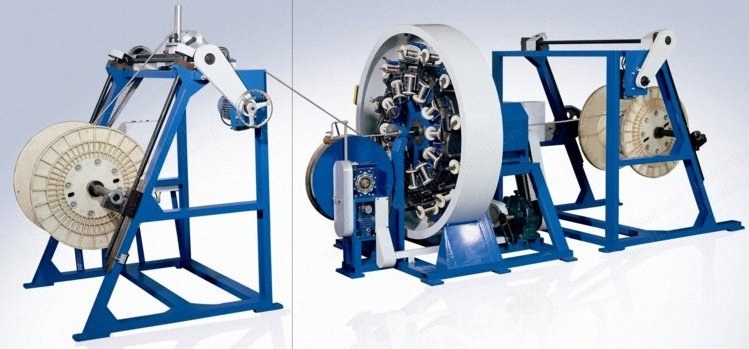

Description Overview Overall diameter of the wires to be braided: max 50 mm Number of strands per carrier: diameter 0.30 mm (1-12), diameter 0.25 mm (2-12), diameter 0.15 mm (3-12), diameter 0.12 mm (4-12) Machine speed control: ac inverter Rotation of the main machine: maximum 85 rpm Pitch regulation: 38 mm to 166 mm, 48 to 240 mm, the pitch may be regulated steplessly Specifications Motor for the main machine: 380 v, 5.5 kw (220 volt/60 hz available) Main motor for take-up: torque motor Reel size: diameter 1600 mm x 1200 mm Lifting motor for take-up and pay-off: 380 v, 1.1 kw (220 volt/60 hz available) Material puller: wheel Bobbin: diameter 100 mm x 135 mm Take-up and pay-off spindle hole: diameter 80 mm Standard Components One braider Separate take-up and pay-off stand (one set) One winder One wheeled puller Braider Material The braiding bobbins may be soft copper wires, aluminum/magnesium alloy wires and stainless steel wires The elongation shall be at least 10% to 17% for soft copper wires and between 3% and 5% for aluminum/magnesium alloy wires Stainless steel would have an elongation between 38% and 45% and a tension strength between 700 and 730 mpa (based on diameter 0.2 mm wire)
