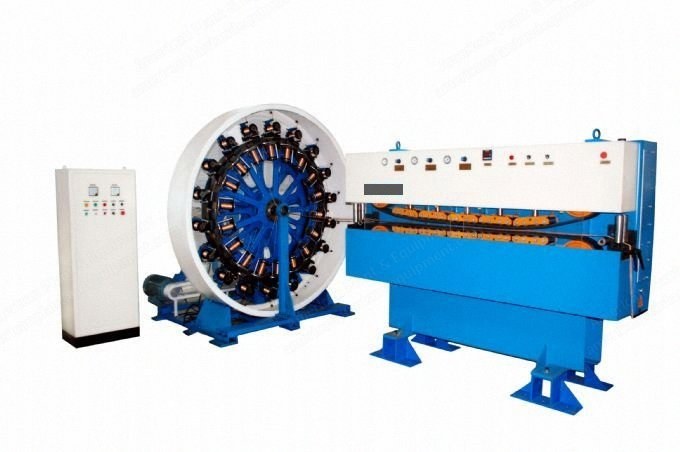

NovaStar, BE127, 36 Carrier Horizontal High Speed Braider, 80mm Max Core, Caterpillar Puller (New)

NovaStar, BE127, 36 Carrier Horizontal High Speed Braider, 80mm Max Core, Caterpillar Puller

Description

  1. Overview
    1. Overall diameter of the wires to be braided: max 80 mm
    2. Machine speed control: AC inverter
    3. Rotation of the main machine: maximum 55 rpm (usual speed is 45 rpm)
    4. Pitch regulation: 49 mm to 249 mm / 72 to 360 mm; the pitch may be regulated steplessly
  2. Specifications
    1. Number of strands per carrier: diameter 0.35 mm (1-7), diameter 0.30 mm (1-12), diameter 0.25 mm (2-12), diameter 0.15 mm (4-12), diameter 0.12 mm (6-12)
    2. Motor for the main machine: 380 V, 7.5 kW (220 volt / 60 Hz available)
    3. Main motor for take-up: torque motor
    4. Lifting motor for take-up and pay-off: 380 V, 1.1 kW (220 volt / 60 Hz available)
    5. Puller: caterpillar track
    6. Reel size: diameter 1600 mm x 1200 mm
    7. Bobbin: diameter 100 mm x 135 mm
    8. Take-up and pay-off spindle hole: diameter 80 mm
  3. Standard Components
    1. One braider
    2. Separate take-up and pay-off stand (one set)
    3. One winder
    4. Caterpillar puller
  4. Braider Material
    1. The braiding bobbins may be soft copper wires, aluminum/magnesium alloy wires, and stainless steel wires
    2. Elongation for soft copper wires: at least 10% to 17%
    3. Elongation for aluminum/magnesium alloy wires: between 3% and 5%
    4. Stainless steel elongation: between 38% and 45%
    5. Stainless steel tension strength: between 700 and 730 MPa (based on diameter 0.2 mm wire)
