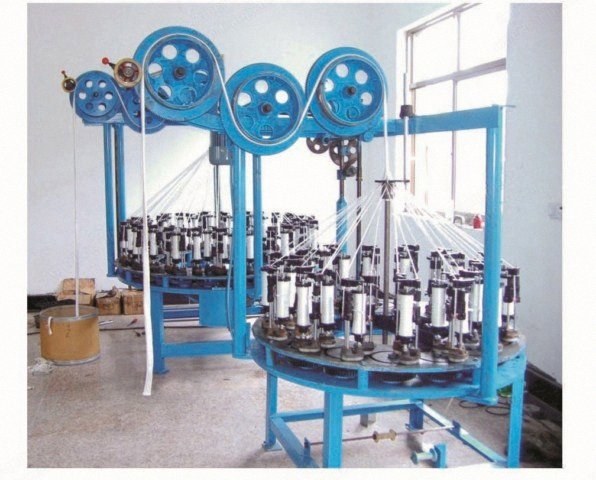

NovaStar, BE132, Hollow Tube Braiding Machine, 48 Spindles, 1750x1800x2300mm (New)

Description

Overview
1. Braiding of heat insulating cord with special round core material, square packing set with corner thread as core material, and annular tubes without any core material.
2. Applicable raw materials: rock wool, black lead fiber, PTFE fiber, aramid fiber, carbon and glass fiber.
3. 48 spindles.
Specifications
1. Machine size: 1750 x 1800 x 2300 mm.
2. Weight: approx 500 kg.
3. Power: per customer request.
4. Main shaft speed: 400 rpm, output 40 to 80 meters per hour.
5. Finished product thickness diameter: 60 to 120 mm.
