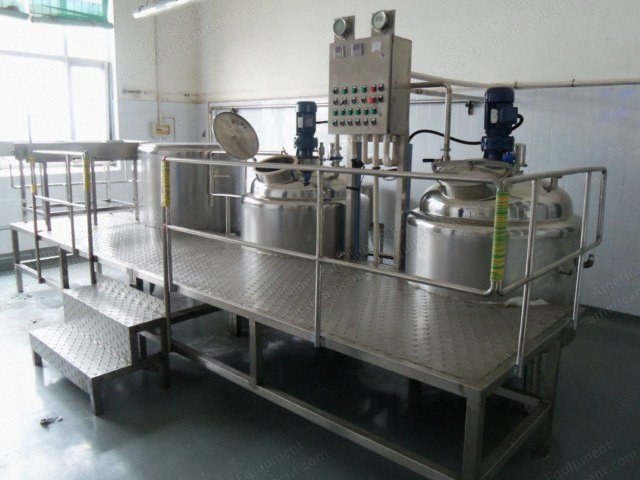

NovaStar, SE118, Red Chili Oil Extraction Line, 400L Stir-Fried Tank, 600L Storage Tank, 3 m3/h Flow Rate (New)

NovaStar, SE118, Red Chili Oil Extraction Line, 400L Stir-Fried Tank, 600L Storage Tank, 3 m3/h Flow Rate

Description

  1. Overview
    1. High-speed quantitative packaging of chili oil, automatic processing of spicy hot-pot seasonings, stable performance, safe and reliable operation systems.
    2. Includes the automatic weighing and packaging units.
  2. Stir-Fried Tank
    1. Automatic processing of chili and other ingredients stir-fried.
    2. Tank capacity: 400 L.
    3. Manual feeding red chili and other ingredients.
    4. Made of stainless steel.
    5. Electricity heating plus conduction oil.
    6. Heating power: 24 kW.
    7. With conduction oil level indicator.
    8. Vertical stirring mode.
    9. Thickness of liner: 3 mm.
    10. Thickness of the jacket: 4 mm.
    11. Thickness of insulation: 50 mm.
    12. Includes three stages, the heating temperature and time can be set and adjustable.
    13. Water inlet on the tank cover (customer-prepared water pipes and valves).
  3. First High-Pressure and High-Temperature Oil Pump
    1. Made of stainless steel.
    2. Pumps the chili oil and sediments from the stir-fried tank to the filter.
    3. Oil temperature: <150 °C.
    4. Oil flow rate: 3 m³/hour.
  4. Primary Chili-Oil Filter
    1. Filters the waste and residues and removes them manually.
    2. Includes residue-filtering unit, primary oil filter and chili oil storage.
  5. Working Platforms
    1. For the stir-fried tank, primary oil filter and secondary filter.
    2. Made of stainless steel, slippery-proof floor and safe rails.
  6. Second High-Pressure and High-Temperature Oil Pump
    1. Made of stainless steel.
    2. Pumps the chili oil from the primary filter to the secondary filter and product oil tank.
    3. Oil temperature: <150 °C.
    4. Oil flow rate: 3 m³/hour.
  7. Secondary Chili-Oil Duplex Filter
    1. Made of stainless steel.
    2. Duplex filter with fine filtering screens.
    3. Stainless steel filtering screens: 80 mesh.
  8. Chili-Oil Tank
    1. Capacity: 600 liters.
    2. Made of stainless steel.
    3. Vertical stirring mode.
    4. Thickness of liner: 3 mm.
    5. Thickness of external wall: 1 mm.
    6. Thickness of insulation: 50 mm.
    7. With (1) chili-oil valve and (4) chili-oil outlets.
  9. Cooling Water Circulation System
    1. Includes cooling water tank, water pump and pipes, etc.
    2. Provides cooling water for high-temperature chili-oil pumps.
  10. Suction Device
    1. For stir-fried tank to clean out clogging wastes.
  11. Control Panels
    1. With (2) control panels.
  12. Piping and Valves
    1. All chili-oil pipes and valves are made of stainless steel.
  13. Centrifugal Chili-Oil Extractor
    1. Used to deoil the residues.
    2. Liner made of stainless steel.
    3. Diameter of inner opening: 600 mm.
