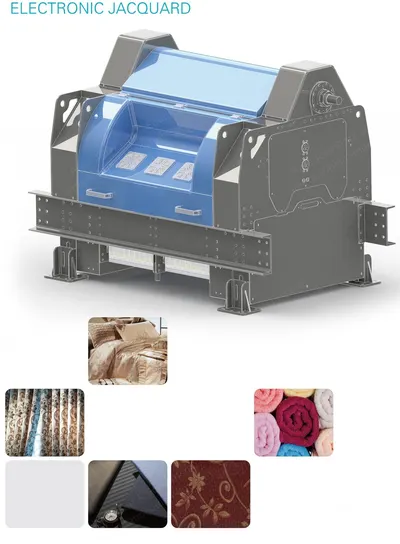

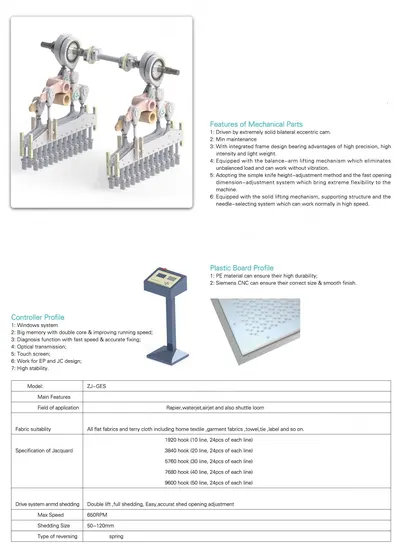

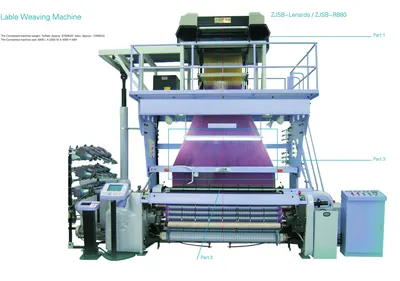

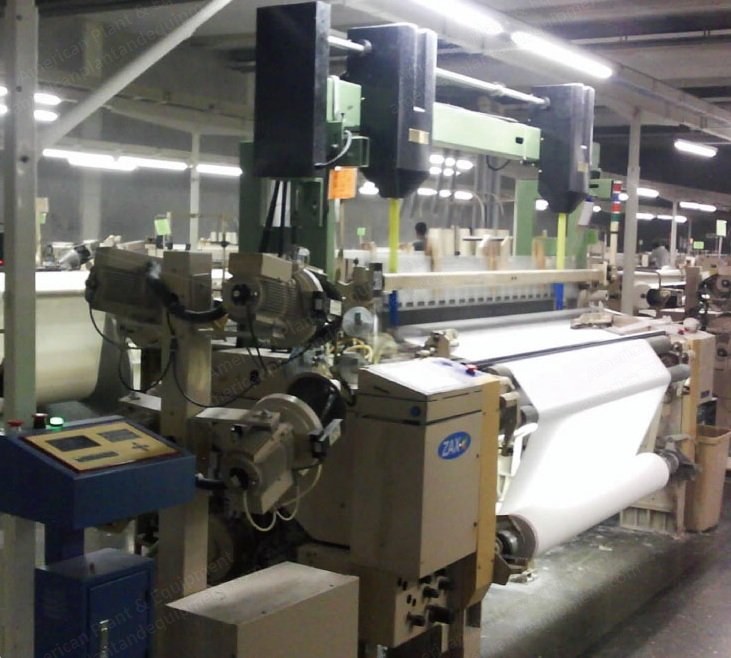

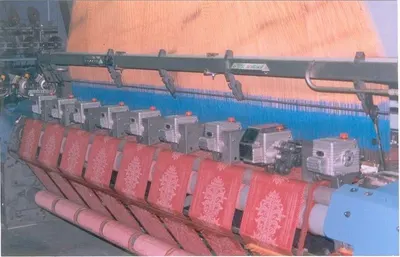

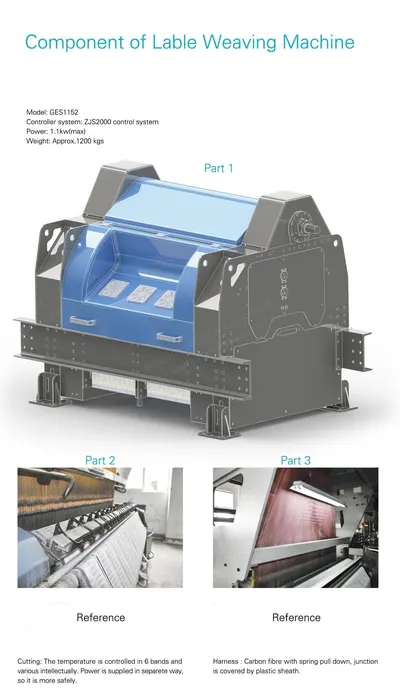

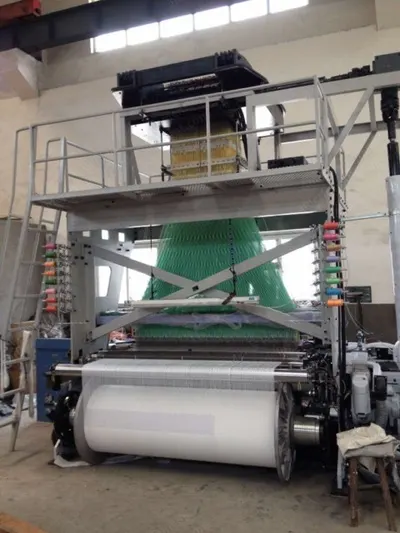

Description Overview Working width: 1678 mm Speed: 650 rpm (maximum) 12 weft color selector controlled by electronic box 8 repeats for taffeta (1 repeat = 20 cm maximum) 16 repeats for satin (1 repeat = 10 cm maximum) Selvedge jacquard Number of hooks: 72 x 2; 72 + 72; 72 + 72 x 2; 72 + 144 + 72 Maximum speed: 110 rpm Specifications Warp beam diameter: 800 mm Cloth take-up diameter: 600 mm (maximum) Power: 7.5 kW main motor Weight: approximately 3780 kgs Electronic density adjustment from 6 to 200 picks per cm Electronic take-up Electronic let-off motion with tensioning device Electronic machine stops automatically when warp or weft breaks Automatic weft pick finding with variable program Centralized lubrication system Control and Systems Electrical control panel complete with microprocessor and graphic display ZJS100 control system Dos system Diagnosis function with fast speed and accurate fixing High stability Spring reversing Thermal System Thermocutting and thermofixing system, full digital setting Intelligent control for cutting temperature and fixing effect
