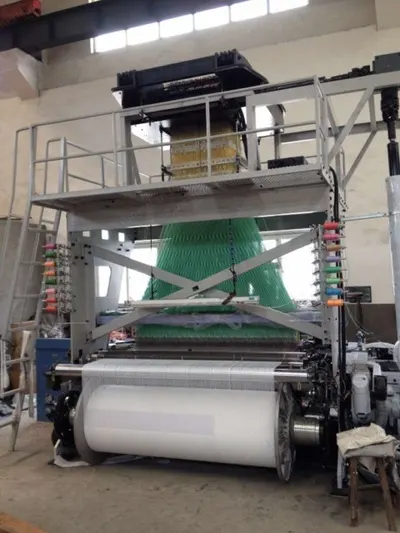

Description Overview Working width: 1678 mm Speed: 550 rpm (maximum) 8 weft color selector controlled by electronic box 8 repeats for taffeta (1 repeat = 20 cm maximum) 16 repeats for satin (1 repeat = 10 cm maximum) Selvedge jacquard with number of hooks: 72 x 2; 72 + 72; 72 + 72 x 2; 72 + 144 + 72 Maximum speed: 110 rpm Electrical And Control System Electrical control panel complete with microprocessor and graphic display Electronic let-off motion with tensioning device Electronic machine stops automatically when warp or weft breaks Electronic take-up Electronic density adjustment from 6 to 200 picks per cm Automatic weft pick finding with variable program ZJS100 control system Diagnosis function with fast speed and accurate fixing High stability Specifications Warp beam diameter: 800 mm Cloth take-up diameter: 600 mm (maximum) Power: 7.5 kW main motor Weight: approximately 3780 kg Additional Features Thermocutting and thermofixing system, full digital setting; intelligent control for cutting temperature and fixing effect Centralized lubrication system Spring reversing DOS system
