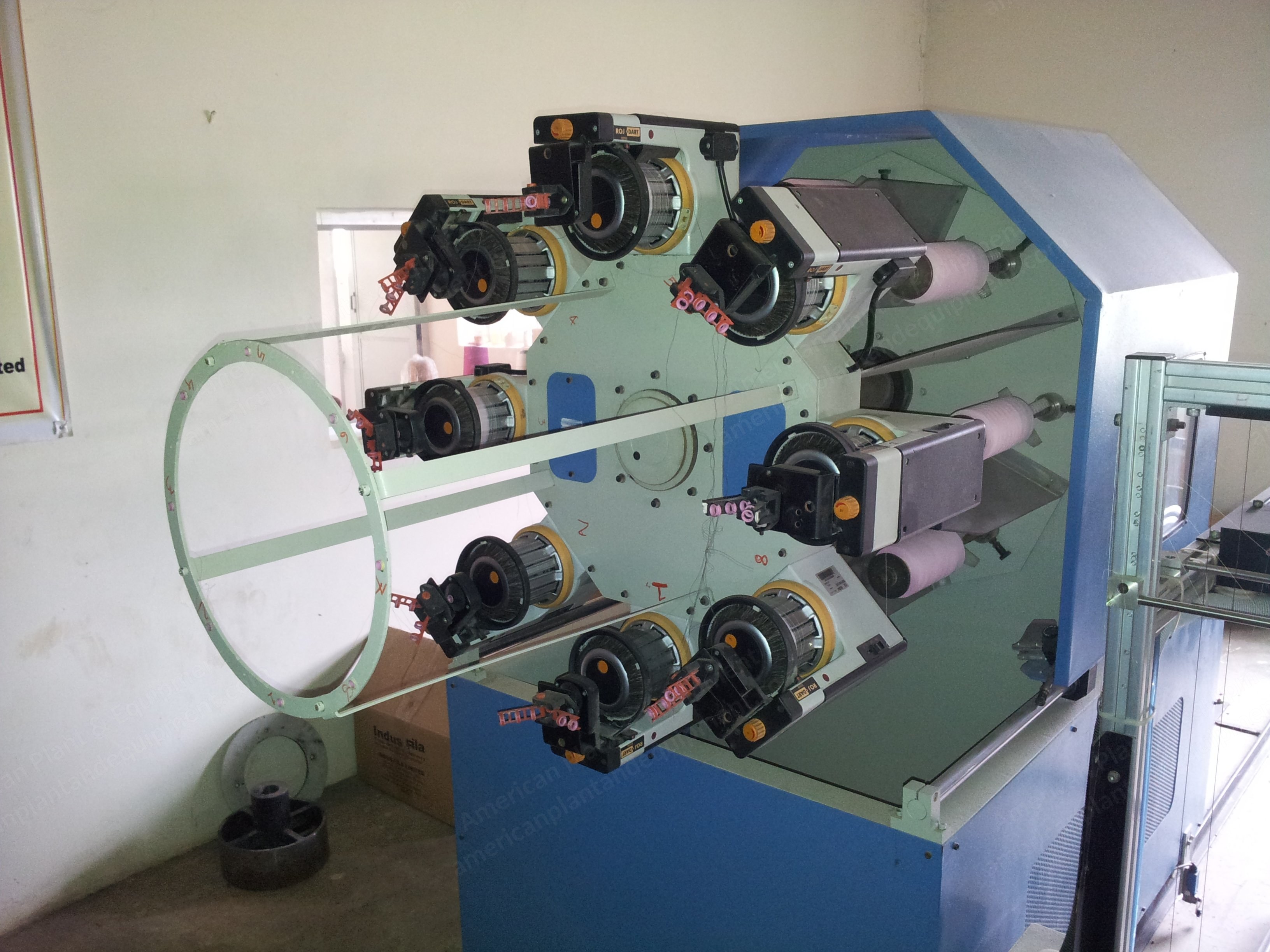

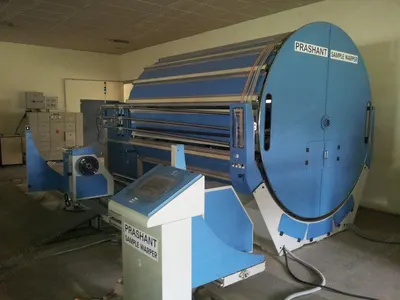

Prashant Gamatex, SW-207, Sample Warping Machine, 2200mm Working Width, 1000mm Max Beam Flange, 7m Drum Circumference (New)

Prashant Gamatex, SW-207, Sample Warping Machine, 2200mm Working Width, 1000mm Max Beam Flange, 7m Drum Circumference

Description

  1. Overview
    1. Working width: 2200 mm
    2. Beam flange diameter: 1000 mm (max)
    3. Drum circumference: 7 meters
  2. Speed Specifications
    1. Warping speed: up to 1000 m/min
    2. Yarn pick-up speed: 600 m/min
    3. Yarn change speed: 600 m/min
    4. Beaming speed: up to 30 m/min
  3. Warping Length
    1. Minimum: 14 meters
    2. Maximum: 210 meters (depending on yarn count and warp density)
  4. Warp Density
    1. Minimum: 4 ends/cm
    2. Maximum: 150 ends/cm (varies depending on yarn)
