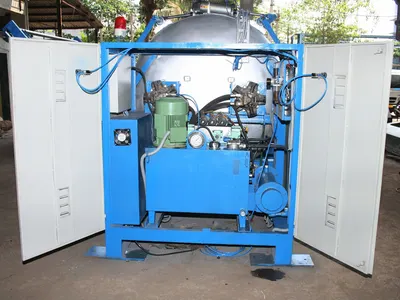

Description Overview Main body m.s. to s.s. (316) cladded Main rolls cladded with 14 g s.s. sheet 316 l quality Guide rolls 4” diameter x 14 g 316 l quality S.s. curved bar expander of 10 swg 316 l quality s.s. having less curvature at the center All stainless steel parts will be 316 l quality only S.s. cladding up to bearing for main rolls Drive And Power Intermot hydraulic motor Speed 100-12 meters 7.5 h.p. ac motor Yuken oil pump and valves Uken power pack solenoid valve Delta inverter with micro process control plc Temp controller increase / decrease type Solenoid valves and other valves of datta make Process And Control Features Circulation pump open impeller & knife cutting with filter pipe line Complete with necessary valves Sample arrangement Jigger will be fully auto with big size 5.47” touch screen Auto reverse / forward auto cycle acting & pendulation provided Batch winder system with hydraulic motor Best quality electrical parts in the control panel Mechanical seal (75 dia) are provided in main roll to prevent leakage of pressure Micro Process Controls In Auto Mode Auto dosing Auto water feed Sampling Auto drain Process step display on screen Auto pendulum Temp control Hooter indicator
