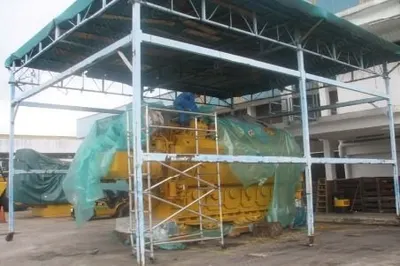

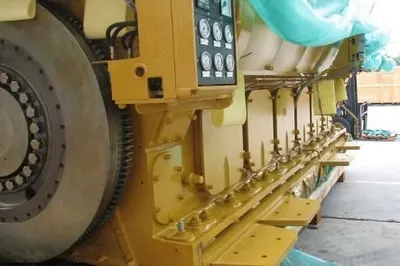

Caterpillar, 12CM32, 2009, 17MW, 6300V, 50Hz, 750 RPM (New)

Caterpillar, 12CM32, 2009, 17MW, 6300V, 50Hz, 750 RPM

Description

  1. Overview
    1. Diesel/LFO/HFO fuel type
    2. Year: 2009
    3. Engine type: 4-stroke cycle diesel engine
    4. Cylinder configuration: V12
    5. Fuel type: LFO, CRO and HFO up to 700 cst
    6. Bore: 320 mm (12.6)
    7. Stroke: 420 mm (16.5)
    8. Turbocharged and after-cooled
    9. Compression ratio: 14.2:1
    10. Engine rating: 5760 kW
    11. Generator set rating: 5590 kW
  2. Electrical specifications
    1. 5590 kW
    2. 6988 kVA
    3. 6300 V
    4. 750 rpm
    5. 50 Hz
  3. Dimensions and weight
    1. Height: 3,329 mm (131)
    2. Width: 3,394 mm (134)
    3. Length: 11,193 mm (441)
    4. Approximate dry weight - engine: 64,400 kg (141,978 lb)
    5. Approximate dry weight - generator: 24,800 kg (54,675 lb)

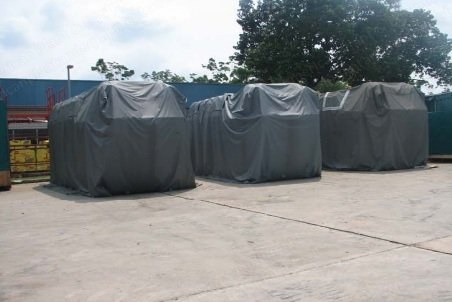

  4. Quantity
    1. 3 units available
