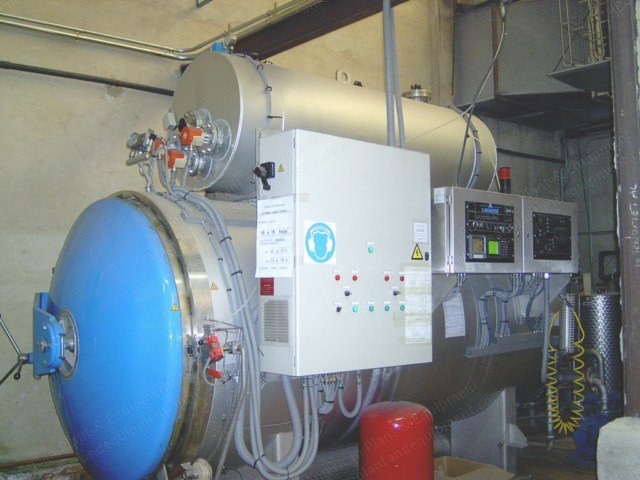

Lagarde Yarn Steamer, 2005, 1670mm Diameter x 3000mm Length, 500 to 2000kg Capacity

Lagarde Yarn Steamer, 2005, 1670mm Diameter x 3000mm Length, 500 to 2000kg Capacity

Description

  1. Overview
    1. Used for fixing the twist and other applications
    2. Make: Lagarde

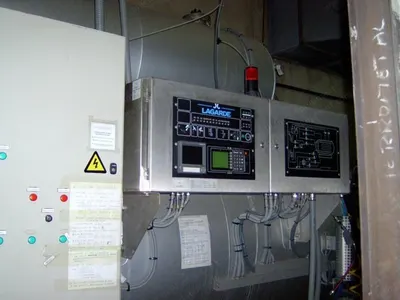

    3. Computerized control
  2. Specifications
    1. Capacity: texturized from 500 to 1000 kgs, parallel yarn 1000 to 2000 kgs
    2. Dimensions: diameter 1670 mm and length 3000 mm
    3. Consumption per 1000 kg of cotton: to increase or decrease the rate of relative hygrometry, we will vary the pressure and temperature; consumption will be about 160 kg of steam
    4. Length of cycle on our charts established on tests for our customers: to cotton, the cycle time is between 60 minutes and 90 minutes; this time depends on the duration of retention temperature and overheating to get the desired degrees of hygrometry
    5. Use of water for cooling the surrounding will be: 1500 liters to 1700 liters of water for a time between 25 to 35 minutes
    6. When the machine is running, the consumption will be 130 kWh
    7. 3 kWh for vacuum pump
    8. 4 kWh for fan motor
    9. 123 kWh to produce steam to come up time
    10. To have 70% humidity, you need to overheat the cotton: more 8°C; for 1 ton of cotton (estimate) to 70 kg of steam: 43 kWh
    11. To have 25% humidity you need to overheat the cotton: more 35°C; for 1 ton of cotton (estimate) to 180 kg of steam: 110 kWh
    12. These values are approximate and should be validated in use in real conditions of use
