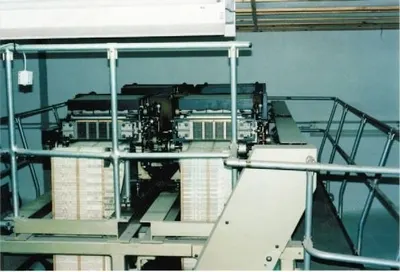

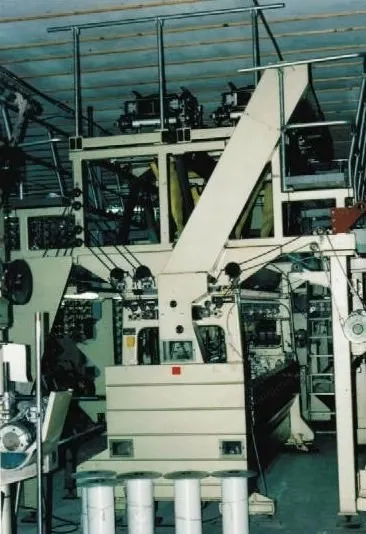

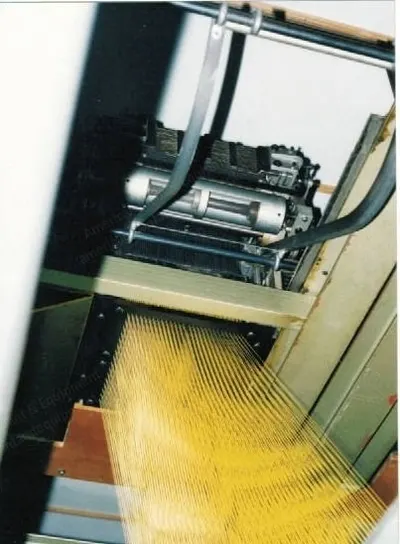

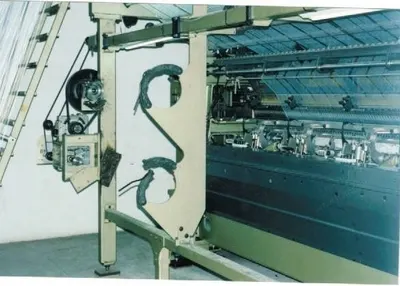

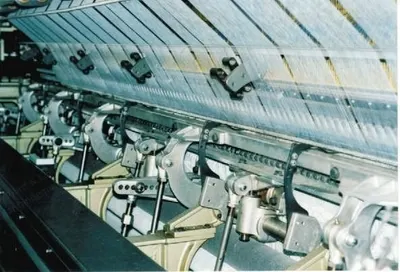

Karl Mayer, HDRJ5/2 PLM, 1998, 3300mm, 14E, Pile Jacquard Machine

Karl Mayer, HDRJ5/2 PLM, 1998, 3300mm, 14E, Pile Jacquard Machine

Description

  1. Overview
    1. Pile jacquard machine with 4 jacquard heads
    2. Year 1998
    3. Width: 130 in (3302 mm)
    4. Model: 14E
  2. Bar Configuration
    1. 4 ground bars
    2. 1 pile bar
    3. 2 letch needle bars

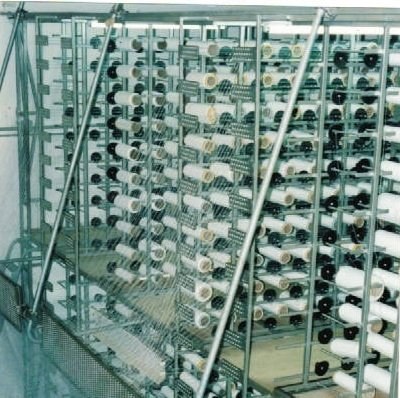

  3. Creels
    1. 2 creels, type GJ 1944
    2. One creel in front and one behind the machine
  4. Lead Types
    1. Letch needle lead type: Z-14-52/2-52
    2. Sinker lead type: S-14-12-19 (2)
    3. Jacquard lead type: LJ-14-8/2-28
    4. Guide needle lead type: DL-14-17/2-9 (1)
  5. Beam Shafts
    1. Four pieces per machine
    2. Diameter: 152.7 mm
