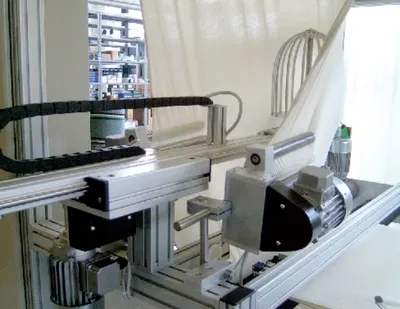

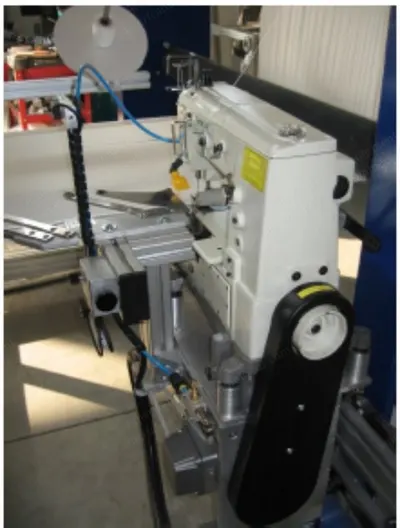

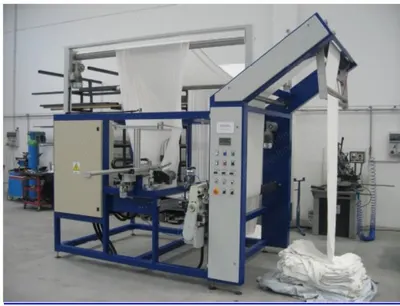

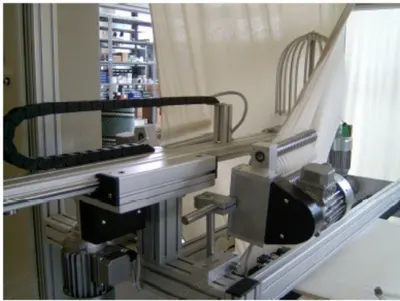

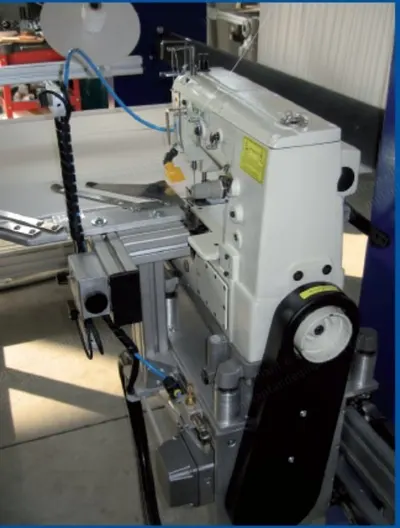

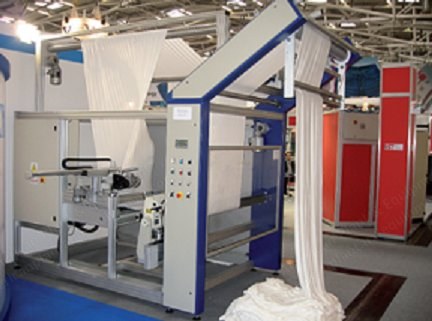

Description Overview Only machine in the world to double the fabric without the triangle Year 2012 - semi new Built in anodised aluminium and painted iron (RAL 5002 / RAL 7035) Specifications Max fabric width: 2400 mm Sewing speed maximum: 50 m/min, medium guaranteed: 35 m/min Stitch length from 2 to 20 mm 380 V supply three-phase + N 4.5 kW power consumption 20 liters/min air consumption Introduction Set Cylinder anti-pleat and adjustable packing brake Motor spiral cylinder Photoelectric cell for the end of fabric Folding and Alignment Set International registered Texma with motor and revolving Ogive rack with inverter fixed on a motorized guide transversal to the fabric feed Double photoelectric device for fabric edge control One device for seam control Two devices for selvage unrollment Four elements directable in all directions Speed control with inverter Motor Drive Set Two positive cylinders with inverter control to permit regulation of fabric tension feed to the seam Sewing Machine Set One thread chain stitch and a thread moveable guide with motor guide and speed control Two devices for fabric edge control Static elements for further unrollment of the fabric Electric machine device for seam control and/or broken thread Air blowers for a good extension of the edges Folding Unit Oscillating arms with open width 80/100 cm Moveable roller support with onoton inverter Controls External potentiometers for speed, tension and stitch length adjustments PLC with operator interface screen for machine controls, general speed control, fabric tension and stitch length Safety Protection devices in accordance with CE
