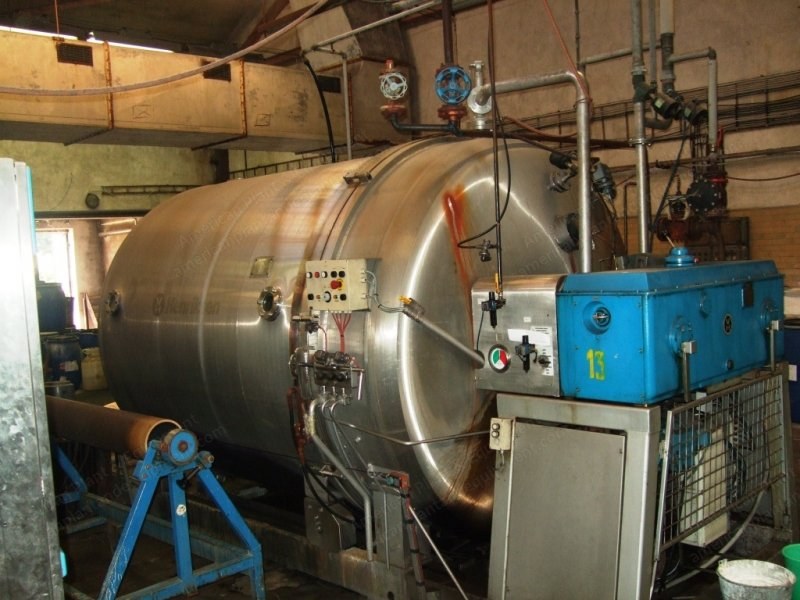

Henriksen, VHS-HT/2000, 1997, 2000mm Working Width, 140C Max Temp, 1200mm Max Roll Diameter

Henriksen, VHS-HT/2000, 1997, 2000mm Working Width, 140C Max Temp, 1200mm Max Roll Diameter

Description

  1. Overview
    1. Year: 1997
    2. Working width: 2000 mm
    3. Width: 2200 mm
    4. Capacity: 1380
    5. Maximum cloth length: 100/T (T = thickness of cloth)
    6. Cloth speed (min/max): 15 to 140 m/min
    7. Maximum diameter rolls: 1200 mm
    8. Maximum tension: 0-100 kg
  2. Specifications
    1. Main motor: 4.0 kW
    2. Circulation pump: 3.0 kW (800 L/min)
    3. Addition pump: 2.2 kW
    4. Dosing pump: 0.37 kW
    5. Temperature: 140 °C
    6. External heat exchanger for both heating and cooling: 4 m²
    7. Heating (dye-liquor): 10-60 °C
    8. Minimum 6 bar saturated steam 60-100 °C (dye liquor): -4.0 °C per minute
    9. Minimum 6 bar saturated steam 100-130 °C (dye liquor): -3.5 °C per minute
    10. Cooling, cooling water: 2 bar, 14 °C, 90-130 °C (dye liquor): -3 °C per minute
  3. Condition
    1. Pictures available upon request
