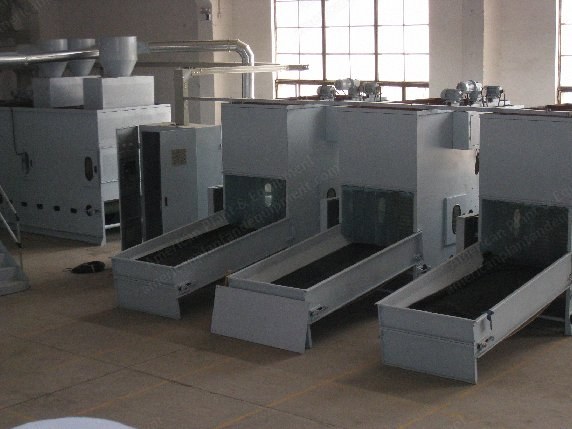

Description Overview Consisting of: Ldk-120 electronic weighing bale opener, Ldks opener, Ldgm-140 hopper blender, pneumatic feeder, double-cylinder and double-doffer carding machine, crosslapper, clamping-feeding device, up-main needle loom, calender, rewinder, and control panel. Ldk-120 Electronic Weighing Bale Opener Width: 1000 mm Output: 30-150 kg per hour Weight: 1.6 t Deviation of weighing cell: ≤ ±5 g Main machine frame made of 8 mm A3 steel plate Motor for spike apron: 1.5 kW Feeding apron: 0.75 kW Ldks Opener Width: 1300 mm 950 rpm Output: 80-200 kg per hour Weight: 1.1 t Power: 6.95 kW Blower motor: 2.2 kW Plucker roller diameter: 450 mm Plucker roller width: 1300 mm Main motor: 4 kW Feeder motor: 0.75 kW Ldgm-140 Hopper Blender Width: 1400 mm Output: 80-300 kg per hour Main machine frame made of 8 mm A3 steel plate Oscillating plate made of 1.2 mm thick steel plate, eccentricity accuracy 10 mm, vibration frequency 300 per minute Main motor: 0.55 kW Strip roller motor: 0.75 kW x 2 Pneumatic Feeder Width: 1400 mm Output: 100-200 kg per hour Power: 4.8 kW Diameter of feeding roller: 180 mm Motor of feeder: 0.75 kW inverter control External diameter of opening roller: 400 mm Motor of opening roller: 2.2 kW independent drive Frequency of vibrating device: 200 times per minute Motor for vibrating device: 0.75 kW independent drive Compressing air system: 0.37 kW x 4 Diameter of delivery roller: 160 mm Double-Cylinder And Double-Doffer Carding Machine Width: 1550 mm Output: 30-180 kg per hour Outlet speed: 20-40 m per minute Power: 34.2 kW Machine weight: 7.5 tons Yarn range: 1.67 dtex - 6.6 dtex Feeding roller: 65 mm x 4 Diameter of licker in: 298 mm Main cylinder: 1230 mm Chest cylinder: 850 mm Work roll/strip roll for main and chest cylinders: 175/87 mm Diameter of upper and lower doffer: 490 mm Diameter of middle doffer: 635 mm Diameter of random roller: 298 mm Front roller: 87 mm Cylinders made of casting steel, wall thick 25 mm Cylinder shaft: 85/70 mm Other rollers made of 6 to 8 mm thick seamless steel pipe Cylindricity of all rollers: ≤ 0.04 mm Carding cloth brand: Haimen Jinglun Motor of main cylinder: 11 kW Motor for work roll of main cylinder: 1.5 kW Motor for chest cylinder: 7.5 kW Work roll and chest cylinder: 1.5 kW Motor for middle doffer and feeding roller: 2.2 kW x 2 Motor for upper/lower doffer and random roller: 2.2 kW inverter control Crosslapper Width: 2200 mm Speed: 50 m/min - maximum 60 m/min Input width: 1700 mm Power: 8.2 kW Machine weight: 3 t Plc and computer control Main machine frame made of Q235A steel - 12 mm thick Pu leather apron Clamping-Feeding Device Input width: 2200 mm Pvc feeding apron Clamping feeding Up-Main Needle Loom Working width: 2200 mm Stroke: 50 mm (pre-needle loom); 30 mm (main needle loom) Needle density: 4500 (pre-needle loom); 30 mm (main needle loom) Needling frequency: 600 to 1100 times per minute (pre needle loom), 80 to 1400 times per minute (main needle loom) Production speed: 0.5 to 8 meter per minute Power: 20 kW Machine weight: 12 tons Main machine frame: welded by Q235A thickness 50 mm, 40 mm, 35 mm, 16 mm Needle plate: 18 mm magnalium plate coating with pu Calender Machine type: vertical double roller Speed: 10 m per minute 1800 mm width Pressing mode: worm wheel Maximum pressure between rollers: 1.5 ton Diameter of lower roller: 400 mm Upper roller: 400 mm Roller heating: electricity and conduction oil Heating power: 54 kW Roller surface temperature: ≤ 210 °C Drive: inverter control Machine power: 61.5 kW Machine weight: about 5 tons Rewinder Speed adjustable With inspection sensor and temp sensor Control Panel Control panel included
