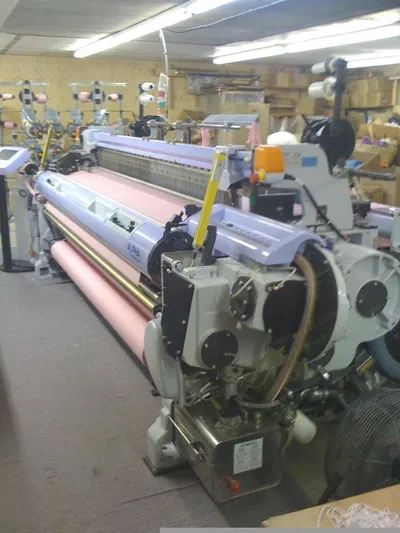

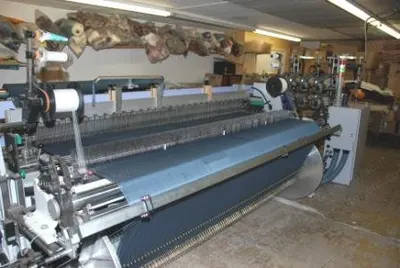

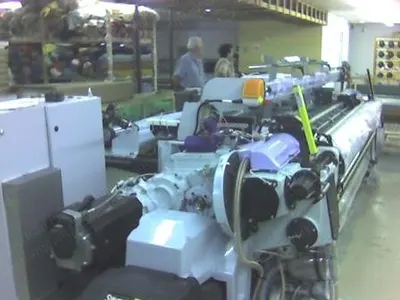

Somet, Alpha, 2600mm, Staubli 2670 Dobby, 8 Colors

Somet, Alpha, 2600mm, Staubli 2670 Dobby, 8 Colors

Description

  1. Overview
    1. Hi-drive version, CE, single beam power maximum diameter 800 mm
    2. Reed width: 2600 mm
    3. Version loom CE mark, with photocell barrier for protection zone comb
    4. Width: 2600 mm
  2. Specifications
    1. Business base alpha PGA predisposed to the trap with automation hi-drive, simple version beam (QBC) for flanges up to 800 mm diameter (excluding drums and flanges)
    2. Simple beams with ISO-DIN class Q2 (diameter 219 mm, thickness 6.3 mm, with side clips cradle), with small flanges for application QBC and flanges with diameter 800 mm
    3. Cylinder beams of the above = no eyelets for fixing the chain
    4. Canvas plastic beam simple chain protecting dust
    5. Staubli dobby 2670, with control for business version of hi-drive frame 20, no. 20 levers, 20 rods
    6. Predisposition guide frames with flanges for smooth lateral L
    7. Track floating G.F.G
    8. Clamp bearing included in the base business, universal type PGA
    9. Pull-clamp included in the base business, universal type double insertion PGA frames
    10. Pair of ribbons, included in the job, type standard track for GFG
    11. Presenting electronic motorized frame for 8 colors, with microprocessor control and cutting the weft standard (standard frames with levers to 200 tex)
    12. Snack frame Eltex G3W 8-position universal, adjustable sensitivity generally through the console business, with anti-double
    13. Gusset synchronized cleaning left clamp
    14. Device A.S.C. microprocessor for business issuers with frame predisposed
    15. Cloth winding internal business (included: bar anti-ply roll holder somet typical store, chain and clutch control)
    16. 2 Somet rolls
    17. Roll call of coated abrasive cloth grain 180
    18. Presser bar with rubber smooth
    19. Warp controlled kind Itema A36E, 6 rows, spacing 30 mm, with indication of the rank and intervene on the side where
    20. Holder for standard temples with pivots
    21. Pair of temples Manea to 24 points with medium rings
    22. Pair of side cutters mechanical
    23. Bar of tissue expander steel business, partially threaded (thread opposite the ends)
    24. Bar extends partially bottom fabric scraps
    25. Pair of lateral devices I.E.S. (independent electronic selvedge) for binding to leno selvedge

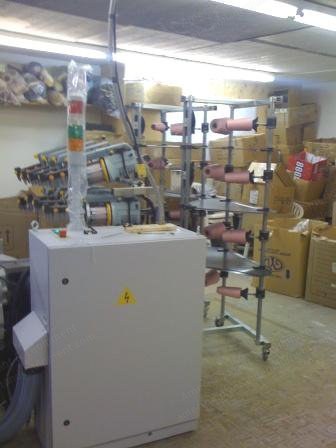

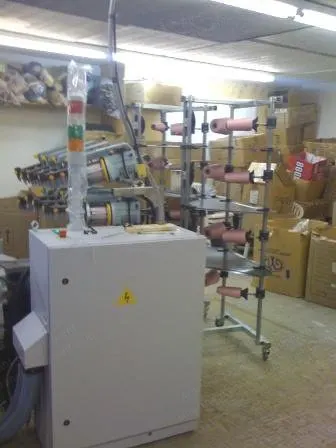

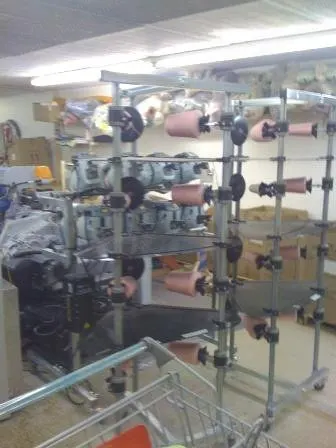

    26. Pair of side creels with 2 coils and place diverter-related tissues (predisposed for the addition of a third coil), with 1 to ensouplette son of selvedge
    27. Small diameter beams to selvedge: 210 mm
  3. Condition
    1. Equipped with dobby Staubli 2670 with 20 ties and attachment VR
  4. Included

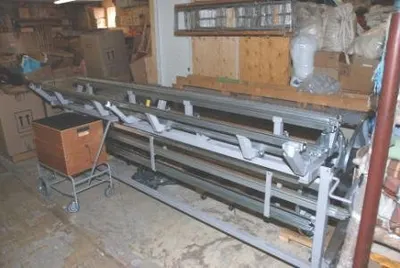

    1. PU-BLA tying machine 2600 mm, complete with accessories
