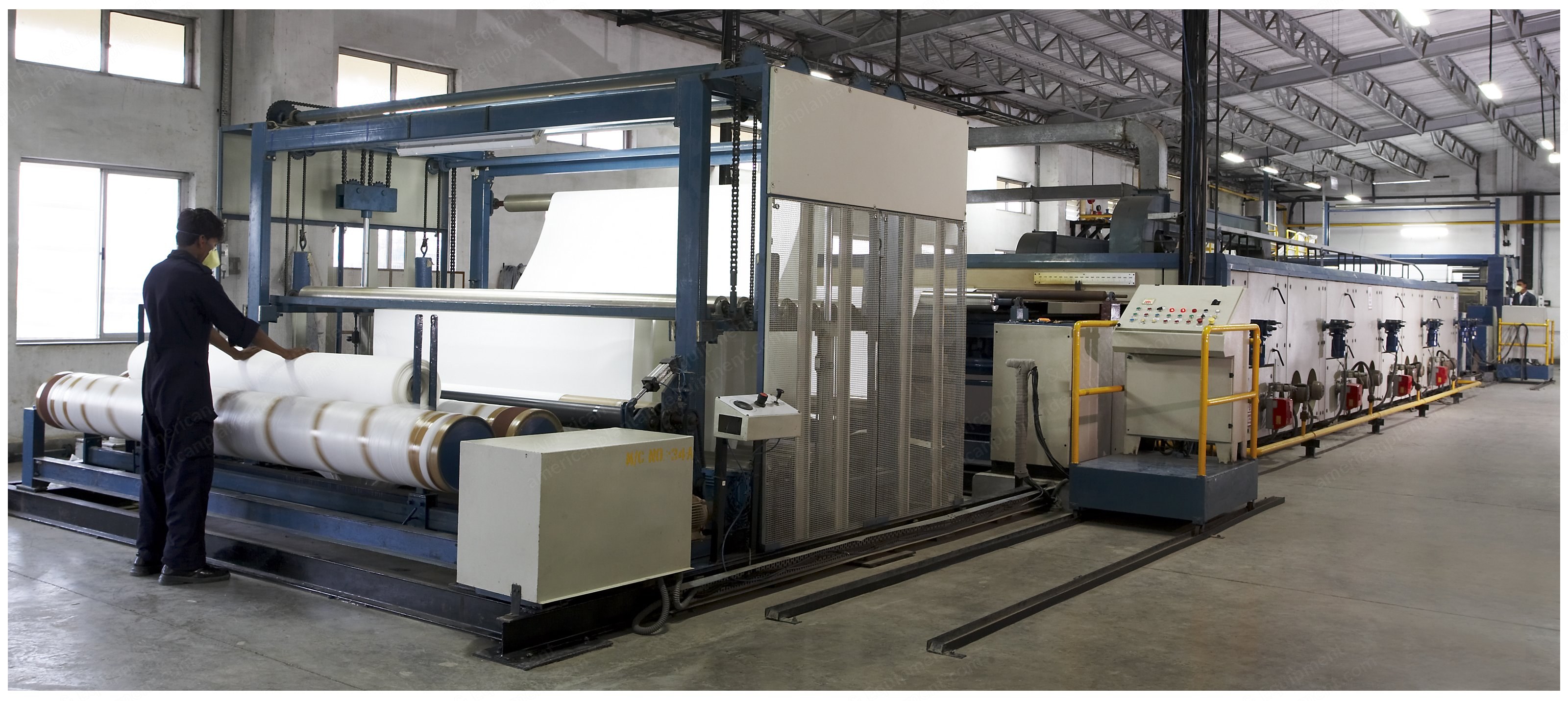

NovaStar, Hot Air Stenter, 2400mm Working Width, 5 Chambers, Gas Fired, Pin and Clip

Overview

1. For nonwovens

2. Single layer horizontal pin type

3. 5 chambers

4. Width: 2400 mm

5. Mechanical speed: 0 – 50 meters per minute

6. A/C variable driving method

7. Gas fired

Specifications

1. Voltage: 415 V

2. Control voltage: 220 V + 5%

3. Temperature: 220 degrees centigrade

4. Insulation: Rockwool

5. Centrifugal type blower – 4 per chamber

6. Chamber length: 3 meters each

7. High temperature resistant paint

8. Side panels and doors powder coated

9. Interiors will be high temperature resistant aluminum painted

10. Dryer frame structure constructed with heavy angle section

Electrical Details

1. Main drive: 15 kW with VFD (inverter)

2. Blower motor: 3.7 kW x 24

3. Exhaust motor: 3.7 kW x 02

4. Overfeed: 1.5 kW

5. Fabric tension: 1.5 kW

6. Selvedge tension: 0.5 kW x 02

7. 2 bowl padder: 5 kW

8. Take up roller: 1.5 kW x 1

9. Spindles for width settings: 0.33 kW x 9

10. Miscellaneous: 5 kW

Included Components

1. 2 bowl padder

2. Exit: surface winder

3. Entry: from A frame
