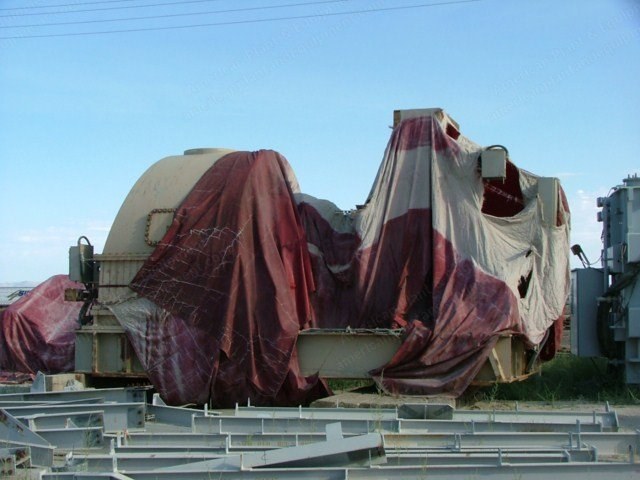

Steam Turbine, 35000 kW, 1992, 1500 PSIG, 43000 kVA, 13800 V

Steam Turbine, 35000 kW, 1992, 1500 PSIG, 43000 kVA, 13800 V

Description

  1. Overview
    1. Rating: 35,000 kW
    2. Inlet steam: 1500 psig / 900+ deg F
    3. Exhaust steam: 1.5" HGA
  2. Generator
    1. Rating: 43,000 kVA
    2. Voltage: 13,800 V, 3 phase, 60 Hz
    3. Type: TEWAC (coolers mounted at top)
    4. Exciter: Brushless
  3. Scope Of Supply
    1. Steam turbine
    2. Condenser (retubed with SS tubes)
    3. Lube oil system with lube oil pump, oil tank, oil cooler, Woodward 505 governor turbine control panel

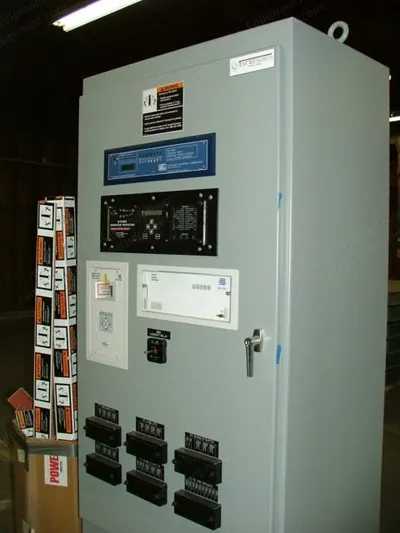

    4. Generator breaker and control panel
    5. Generator
    6. Air ejector system
    7. Condensate pumps with motor
    8. Main steam stop valve
