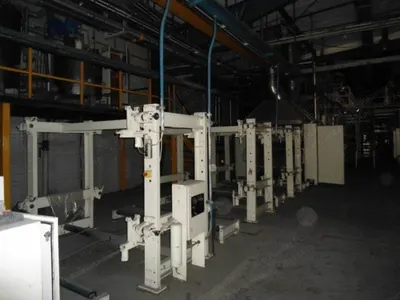

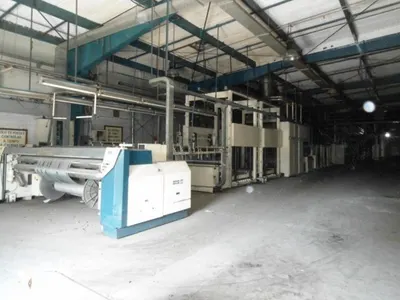

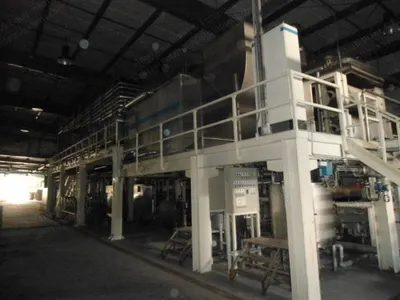

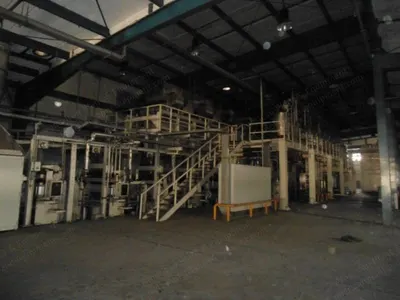

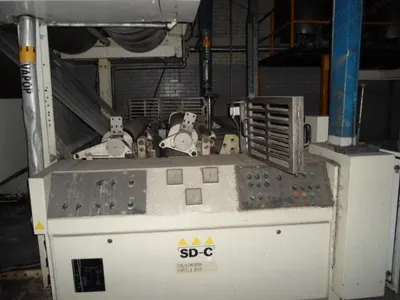

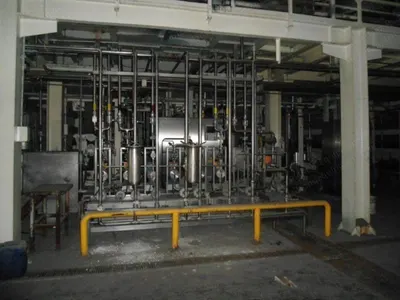

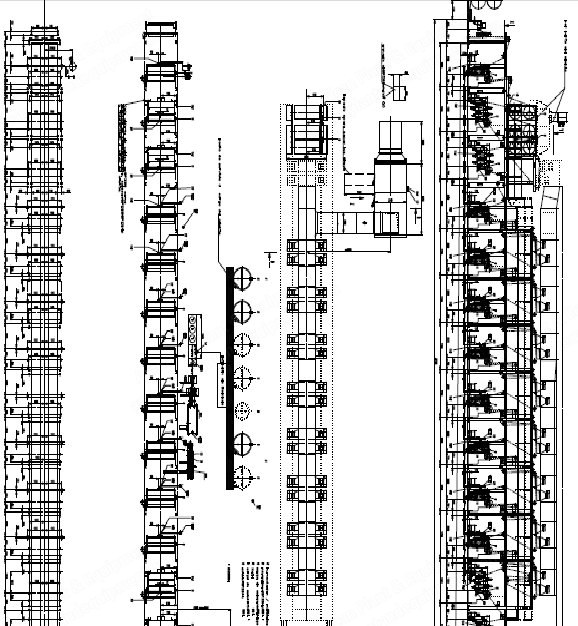

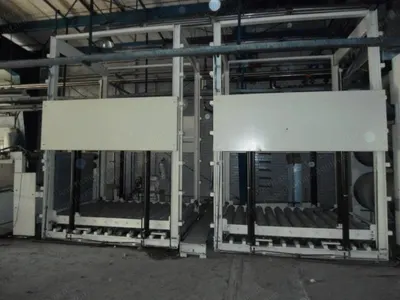

Description Overview 12 beams Model: Z68 Vario type box for washing, mercerizing, and predyeing Indigo dye pilot semi automatic dosing system (model FDC) with PLC and command module type SPS controlling the dosing pumps (membrane type) Full control cabinet Specifications Width of cylinder: 1800 mm Warped width of processing: 1600 mm Maximum pressure: 100 kN Dyebath circulation system prepared to divide the dye boxes into 3 sections including circulation 3 pumps 2.2 kW and 24 cubic meter capacity Dryer Details Cylinder dryer type ZG-6, six dry cylinders 800 mm diameter Slasher/sizing dryer type ZM2/2-6 with separate temperature control Wash Boxes and Rolls 2 standard type wash boxes with cascade water fall and direct and indirect heating by steam Two prefry rolls – top roll is 185 mm diameter and 75 shore, bottom roll is 128 mm diameter and 99 shore Now dry rolls are 253 mm diameter and 99 shore (bottom), top roll is 240 mm diameter and 85 shore All guide rolls from the first mercerizing box to the last wash box are stainless steel Dosing System For indigo For caustic soda For two times sulfur colors For hydrosulfite in powder form with 10 to 200 grams per minute each 400 liter per minute capacity except last one Condition Used industrial machine
