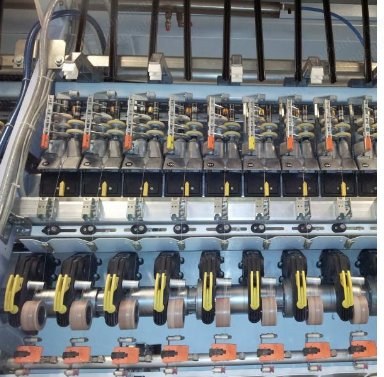

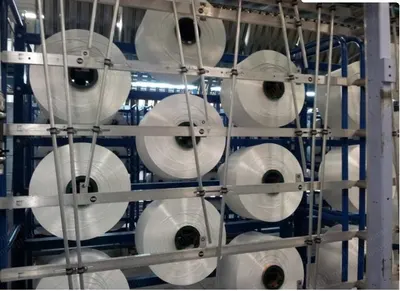

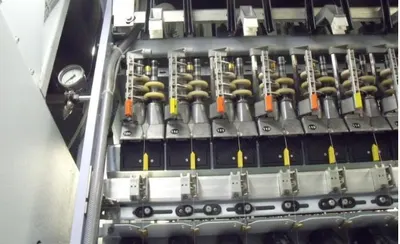

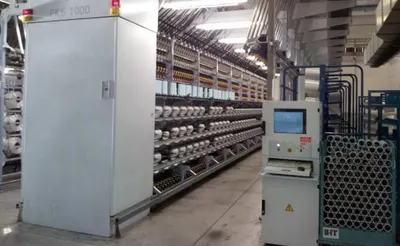

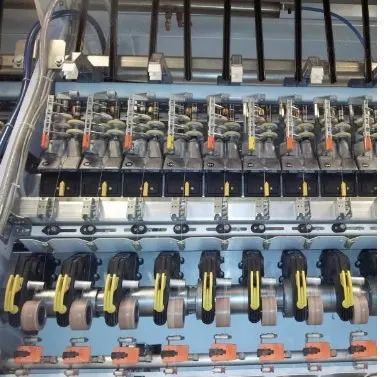

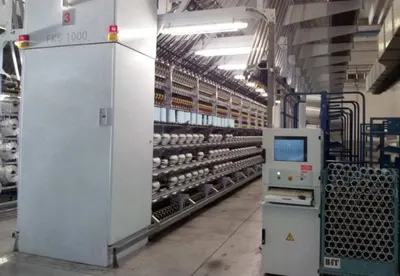

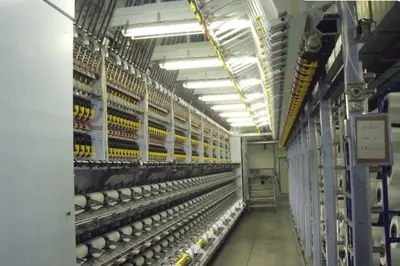

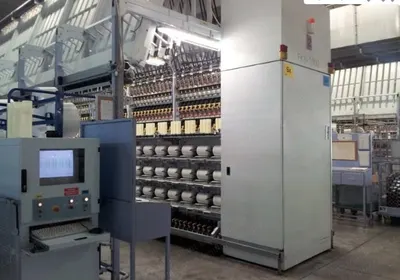

Description Overview Two Barmag model FK6M-1000, independent command each side Two Barmag model FK6V-1000, single command Trolleys creels, 2-3-4 ends, manual doffing, intermingling devices, take up tube 290 mm Unitens on all machines Jets are type Heberline slidejet with ceramic yarn guide in input and in output As interlacing ceramic plates the company used the P203-2, available 1 jet per position Specifications For Barmag Model FK6V-1000 Height: 5.98 m Width: 4.7 m ground, 7.2 m at the top Length: 17.08 m Energy consumption: max 130 kW Mechanical speed: 300 to 1200 m/min Capacity of production: 50 denier, 1000 kg/day; 150 denier, 3000 kg/day; 300 denier, 6000 kg/day Draw ratio: 0.8 to 8 Number of positions: 216 Type of tube: diameter 69 mm Tube length: 290 mm Titer range: 50 to 660 dtex Heater temperature range: max 250 °C Disc speed / yarn speed (D/Y): 1 to 3 Type of aggregate: polyurethane discs Max package diameter: 250 mm Traverse stroke length: 250 mm Length of 1st heater: 2000 mm Length of 2nd heater: 1460 mm Length of cooling device: 1100 mm Specifications For Barmag Model FK6M-1000 Height: 5.2 m Width: 4.7 m Length: 17.08 m Energy consumption: max 130 kW Mechanical speed: 300 to 1200 m/min Capacity of production: 75 denier, 1500 kg/day; 150 denier, 3000 kg/day; 300 denier, 6000 kg/day Draw ratio: 0.8 to 8 Number of positions: 108 x 2 Type of tube: diameter 69 mm Tube length: 290 mm Titer range: 78 to 1000 dtex Heater temperature range: max 250 °C Disc speed / yarn speed (D/Y): 1 to 3 Type of aggregate: polyurethane disc Max package diameter: 250 mm Traverse stroke length: 250 mm Length of 1st heater: 2500 mm Length of 2nd heater: 1460 mm Length of cooling device: 2100 mm
