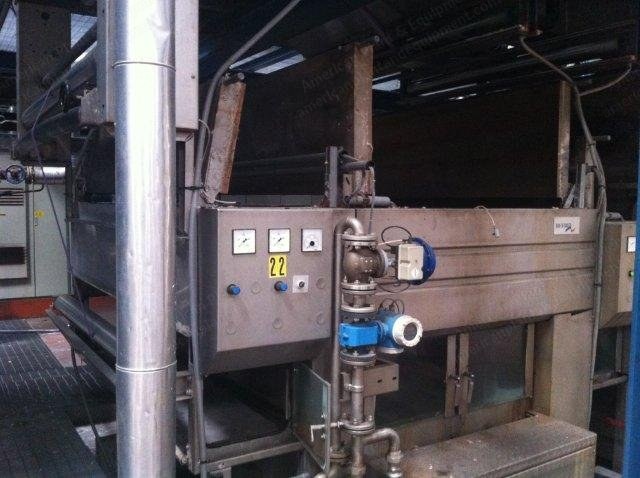

Benninger, Impacta-DL 169 T - LG Extracta, 2000, 2000mm Working Width, 16 Drying Cylinders, 50 m/min

Benninger, Impacta-DL 169 T - LG Extracta, 2000, 2000mm Working Width, 16 Drying Cylinders, 50 m/min

Description

  1. Overview
    1. Working width: 2000 mm
    2. Year: 2000
    3. Type of working fabric: cotton 100%, linen, viscose, visc/linen, cotton/linen, cotton/lycra, cotton/linen/lycra, cotton/wool
    4. Weight of fabrics: 110-450 gr/mtl
  2. Technical Details
    1. Total roll width: 2200 mm
    2. Minimum width: 950 mm
    3. Production speed: 50 mt/min
    4. Electrical tension: 3x 400 V +/- 10%
    5. Frequency: 50 Hz
    6. Voltage: 24 VDC / 230 VAC
    7. Engine total power: about 145 kW
    8. Power installed: about 200 kVA
    9. Water pressure (over pressure): min 2 bar / max 4 bar
    10. Saturated steam (over pressure): min 4 bar / max 6 bar
    11. Air pressure: min 7 bar / max 12 bar
    12. Stainless steel quality: DIN 1.4404 (AISI 316L) and DIN 1.4435 (AISI 317L)
  3. Composition of Machine

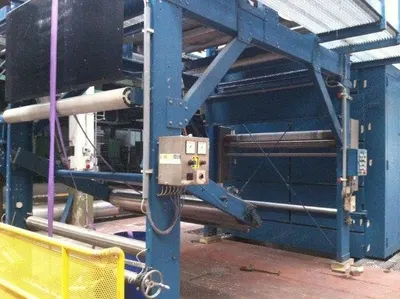

    1. Entry unit with traction unit and build-up of fabric
    2. Roll fabric change without stop of machine

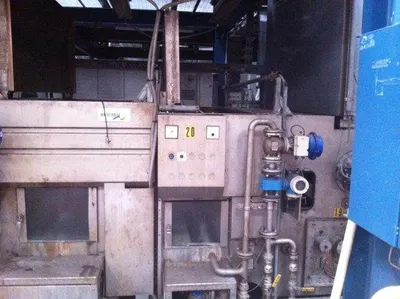

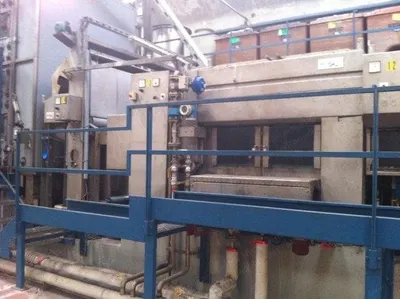

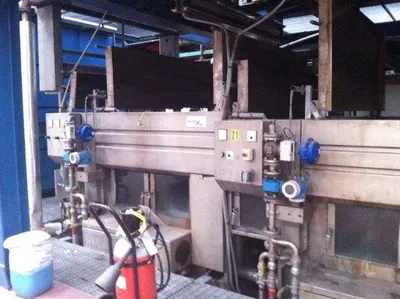

    3. Washing unit closed, type LG DA6 with double fabric passage, fabric mts 28
    4. Closed washing unit, type LG DA6 with double fabric passage, fabric mts 28
    5. Squeezing unit with high efficiency – linear pressure max. 500 N/cm
    6. Impregnation impacta with chemical supplying

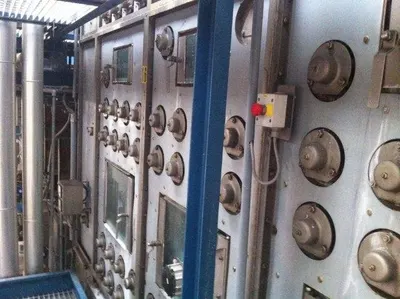

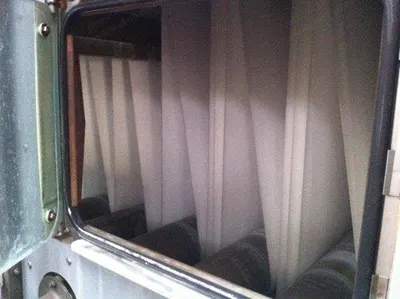

    7. Pretreatment steamer, model DL 160 T – shock treatment 1-3 min at 100°C – guided passage of 160 m of fabric

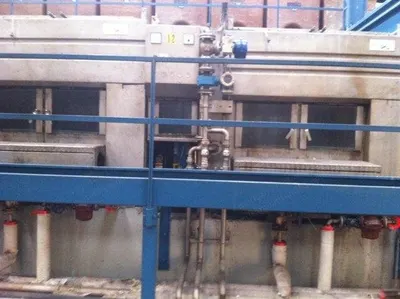

    8. Closed unit of washing, type LG D1, with double passage of fabric, 5 m
    9. Closed unit of washing, type LG DA4, with double passage of fabric, 18 m
    10. Closed unit of washing, type LG DA6, with double passage of fabric, 28 m
    11. Closed unit of washing, type LG DA4, with double passage of fabric, 18 m
    12. Closed unit of washing, type LG DA4, with double passage of fabric, 18 m
    13. Squeezing unit, high efficiency, linear pressure max. 500 N/cm

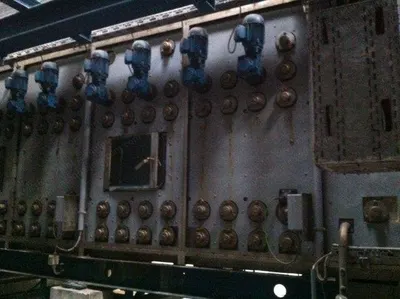

    14. Cylinder drying – 16 drying cylinders, diam. 570 mm
    15. Exit unit – roll max. diam. 2000 mm with build-up of fabric for rolls change without stopping the machine
