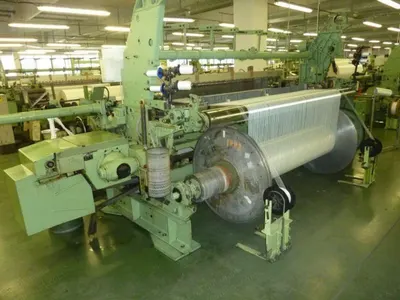

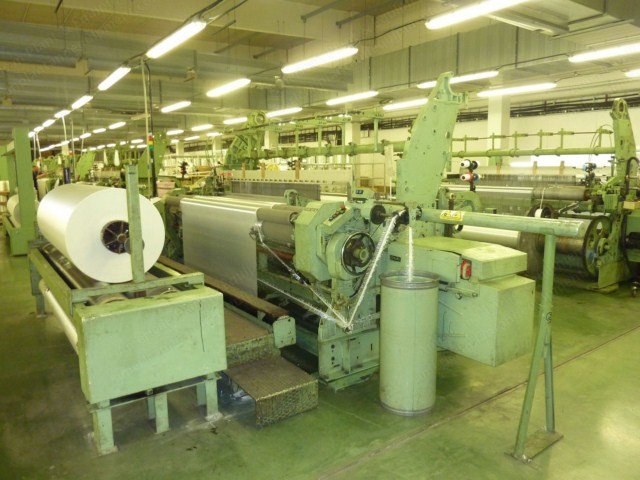

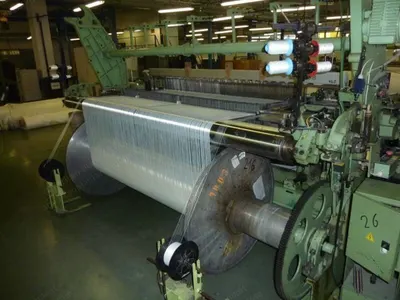

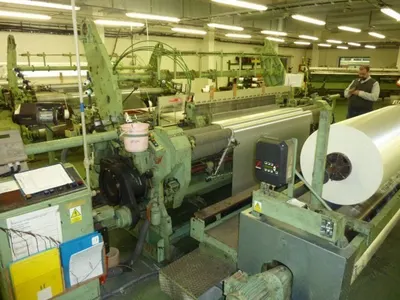

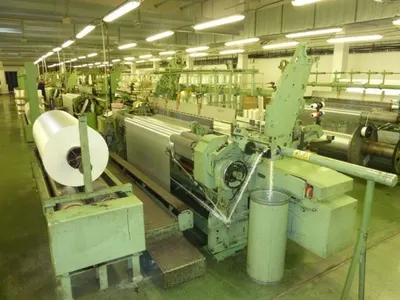

Dornier, GTV4/SD, 1986/1987, 2600mm, Staubli 2430 KR2 Mechanical Dobby, Triple Reinforced for Heavy Technical Textiles

Name: Dornier, GTV4/SD, 1986/1987, 2600mm, Staubli 2430 KR2 Mechanical Dobby, Triple Reinforced for Heavy Technical Textiles
Brand: Dornier
SKU: K-3169

‹ Go Back Next Product ›

Description

Overview
1. For production of high performance fabrics such as conveyor belts, filters, bullet proof fabrics, reinforcement fabrics for sport equipment, sport car components, etc.
2. Triple reinforced for heavy technical textiles
3. Year: 1986/87
Specifications
1. Staubli 2430 KR2 mechanical dobby, 16 levers installed
2. Warp stop motion
3. Electronic warp let off
4. 6 heald frames, pitch 12 mm
5. 1.5 warp beams, Q3 (heavy) 1000 mm diameter
6. Big batch roller
7. All machines are prepared for upper beam
8. 8 machines complete with upper beam device with electronic upper beam let off system
9. Out of 10 looms, 9 are upgraded with Ergotron frequency controlled warp beam let off
10. Looms are all with 16 undermotions
11. Maximum 16 undermotions weaving
12. Looms are prepared for running on maximum 4 colors, controlled by the dobby
13. Not all machines have 4 green flex cables
Condition
1. Quantity: 4

Additional Specifications

HS code	8446.30

Specifications

Applications	High performance fabrics (conveyor belts, filters, bullet proof fabrics, reinforcement fabrics)
Dobby	Staubli 2430 KR2 mechanical dobby, 16 levers installed

Performance

Colors	4
Heald frames	6
Warp beams	1.5

Dimensions

Dimensions	2600mm working width
Working width	2,600 mm
