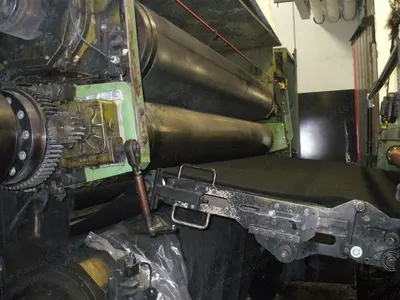

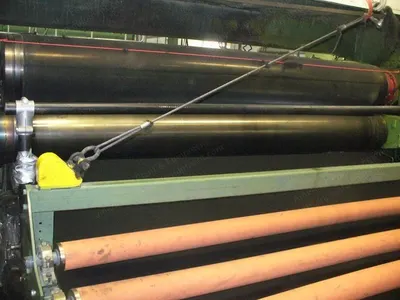

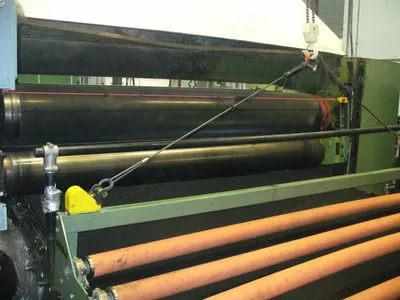

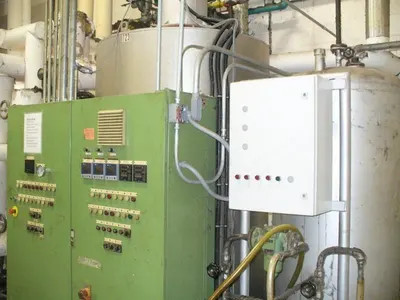

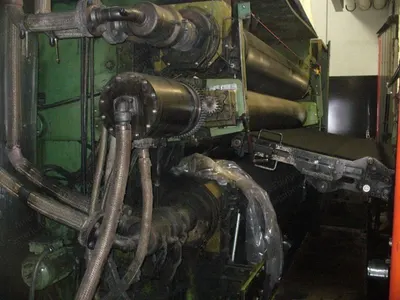

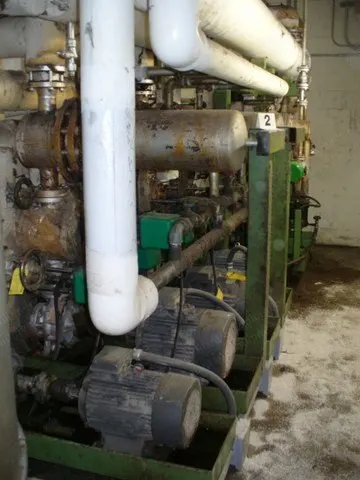

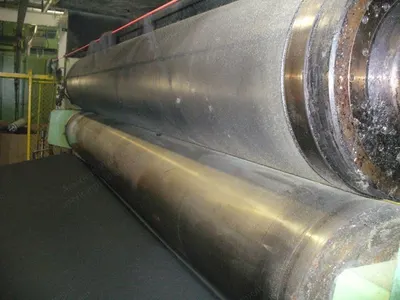

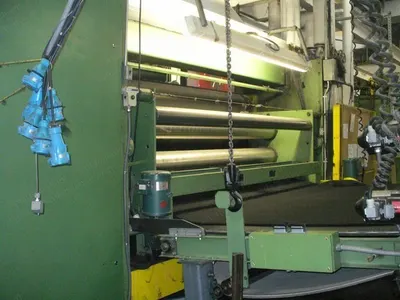

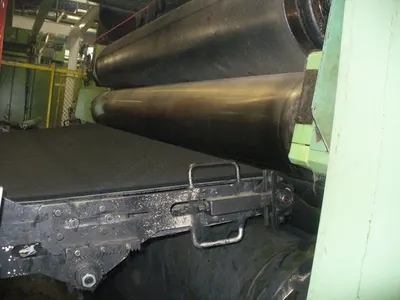

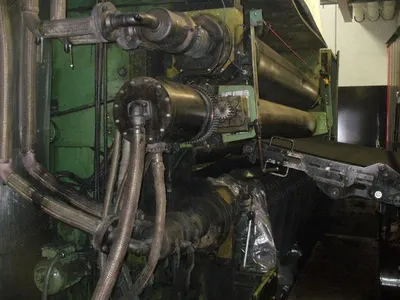

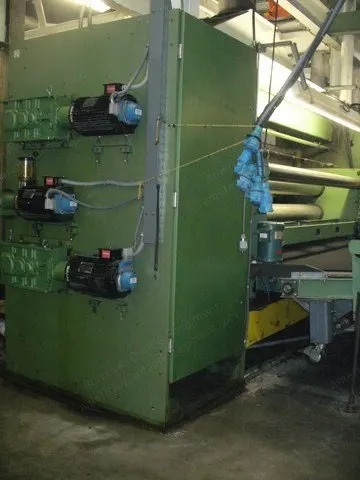

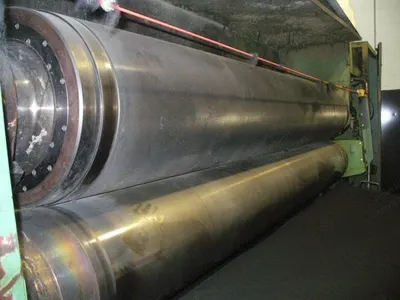

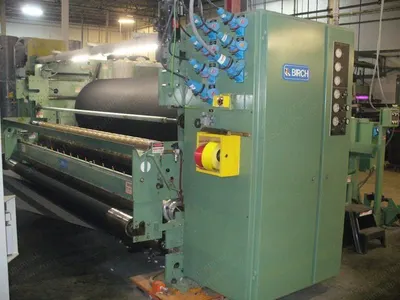

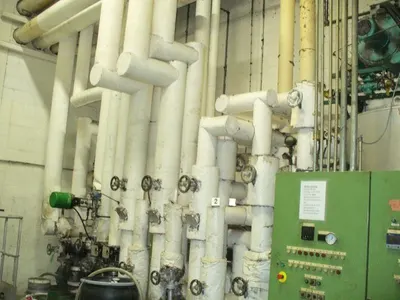

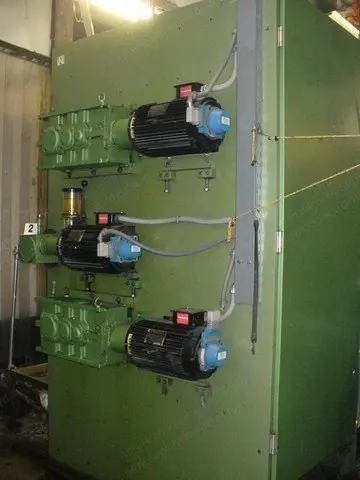

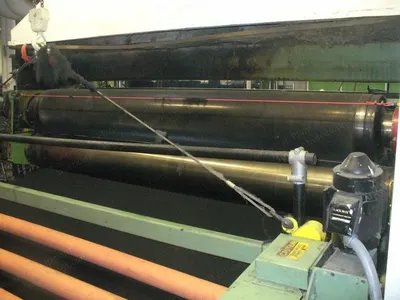

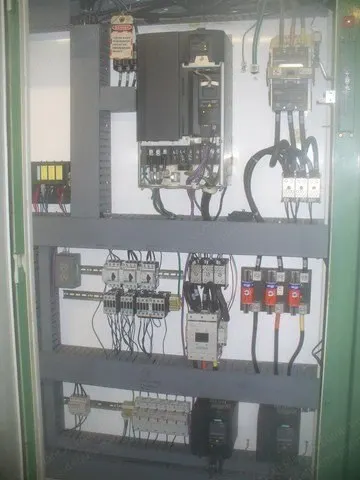

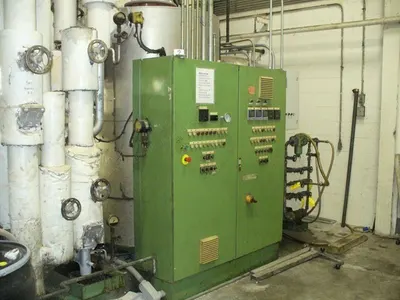

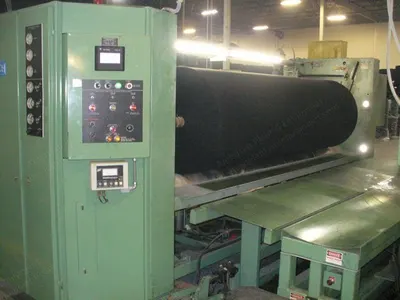

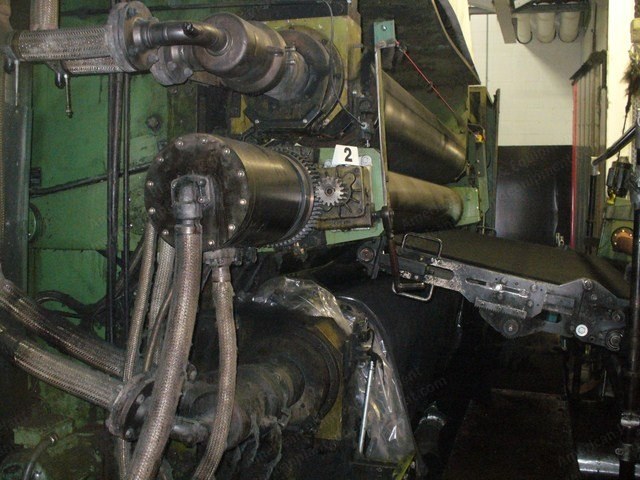

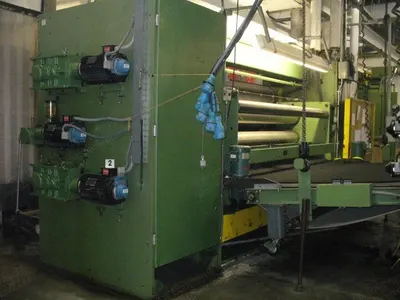

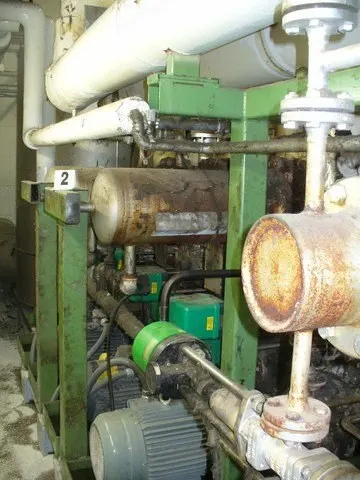

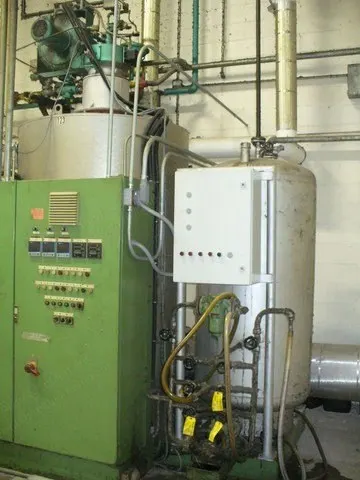

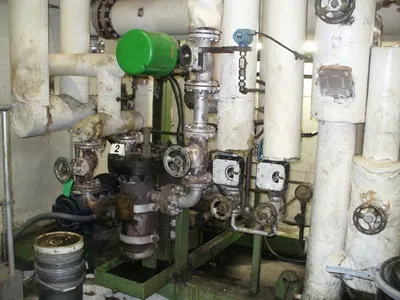

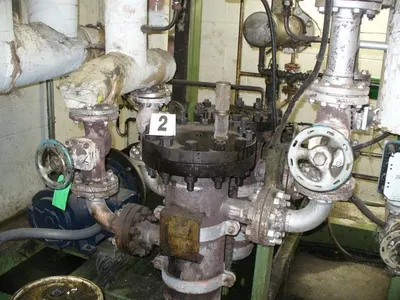

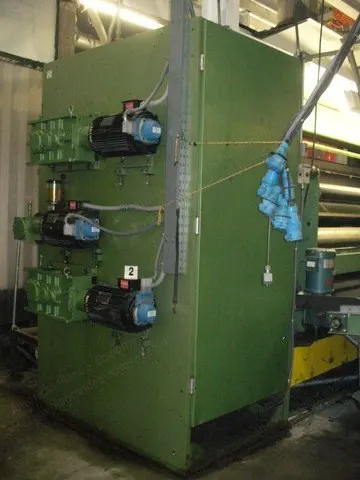

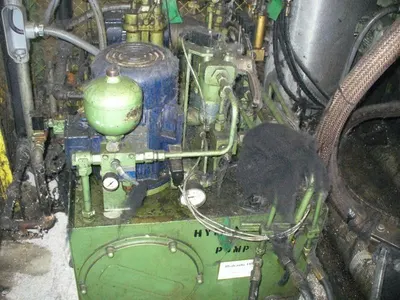

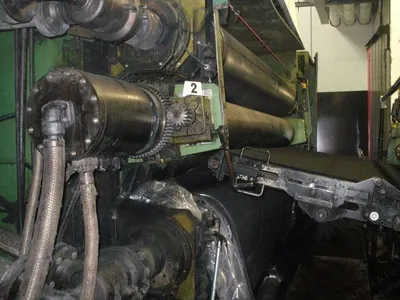

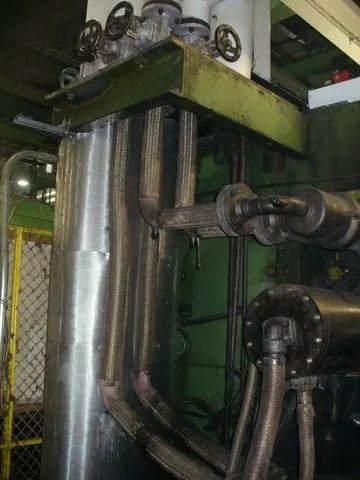

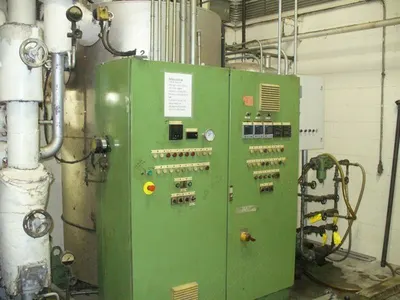

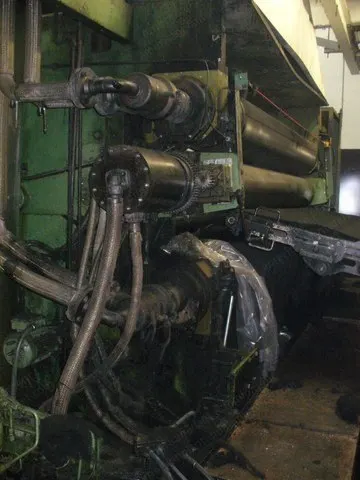

Description Overview Thermobonding of non-woven fabrics Materials: PP, PE, PES, PA, and blends This machine was running interlining, polyester fiber 20 grams to 80 grams per square meter Speed: up to 100 meters per minute Specifications Maximum material width: 2850 mm Roll surface width: 3100 mm Engraving width: 3100 mm Final product: 2720 mm Hydrein roll with steel shell: 380 mm diameter Steel roll, bottom: 450 mm diameter Pressing capacity: top nip 15 to 80 N/mm, bottom nip 15 to 80 N/mm Speed range: 4 to 80 m/min Fabric feed with conveyor belt Top roll is engraved: 460 mm (18”) diameter Middle roll is metal: 410 mm (16”) diameter Bottom roll is engraved: 460 mm (18”) diameter Heating System Thermal oil Heating medium: natural gas, alternatively fuel oil Primary heater uses Eclipse dual fuel burner, brand Eclipse Surface temperature of engraving rolls: 270 °C Surface temperature of Hydrein roll: 250 °C Hot oil boiler included with all controls Input Power Engraving rolls: about 2 x 7 kW Hydrein roll: about 4 kW Cooling rolls: about 2 kW High pressure pump: 28 kW System voltage: 480 V, 60 Hz Control voltage: 115 V, 60 Hz Each motor is 10 hp, 460 V Condition and Included Paint finish of the machine, motor control desks and cabinets: RAL 6011-green Driven side: in direction of fabric passage, on the right Calendar comes with pressure controls for the Hydrine roll and the drives for the AC motors Comes with a lot of spare parts but does not have a control system No winder included Does not include CPU, so will need programming
