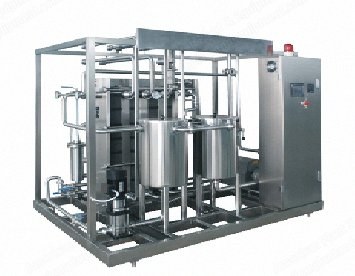

Description Overview Plate heat exchanger with 4 sections Design flow: 1 t/h Heat exchanging area: 12 m2 Pressure resistance: 1.0 MPa Power: 3 kW Dimensions: 1500 x 1500 x 2000 mm Weight: 1800 kg Temperature Specifications Input temperature: 55 °C Homogenizing temperature: 73 °C Pasteurizing temperature: 80 to 90 °C Holding time: 20 seconds Regeneration temperature: 62 °C Diversion temperature: 37 °C Output temperature: 47 °C Utility Requirements Ice water: working pressure 0.3 MPa, input temperature ≤ 2 °C, consumption 4 t/h Tower water: working pressure -0.3 MPa, input temperature ≤ 30 °C, consumption 4 t/h Compressed air: 0.6 MPa, consumption 0.03 m3 per minute Steam: input pressure -0.5 MPa, working pressure 0.3 MPa, consumption 45 kg per hour Construction and Piping Frame work: stainless steel 50 x 50 x 2 to 100 x 50 x 2.2 mm Isolation pipe: stainless steel ɸ63.5 x 1.5 Product pipe: stainless steel ɸ50.8 x 1.5 Hot water pipe: stainless steel ɸ50.8 x 1.5 Ice water pipe: stainless steel ɸ63.5 x 1.5 Tower water pipe: stainless steel ɸ63.5 x 1.5 Steam pipe: stainless steel ɸ50.8 x 1.5 Compressed air pipe: flexible hose ɸ6 x 1 Pumps and Tanks Product pump: centrifugal 2.2 kW Product balance tank: 100 liters Hot water balance tank: 40 liters Hot water pump: 0.75 kW Valves and Accessories Four two position four way pneumatic glove/selector valve - DIN 25 Auto temperature control valve Diaphragm steam pressure reduction valve Steam filter Two steam shut off valves Steam pressure gauge Three platinum resistance thermometers Nine jacket double metal thermometers Pressure gauge Temperature controller Auto jet water heater Control Panel 10" touch screen PLC Temperature controller module PID Temperature recorder Three ele-megnstism valves Two dual combinations Cabinet CIP Unit Two acid/lye pumps - 1/4 G PP, TF Two tanks - SS316L Three way glove valve
