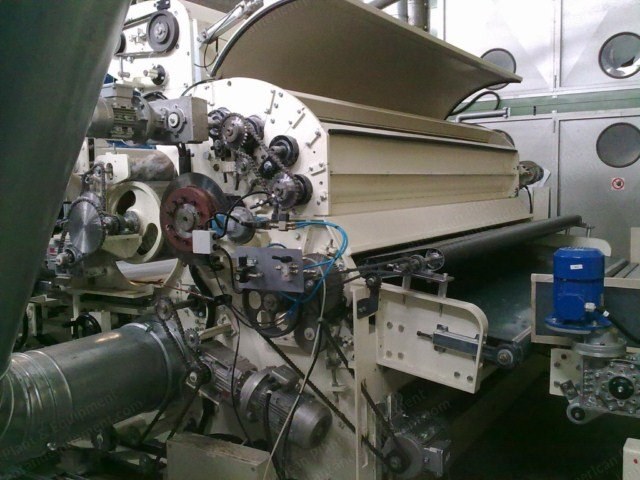

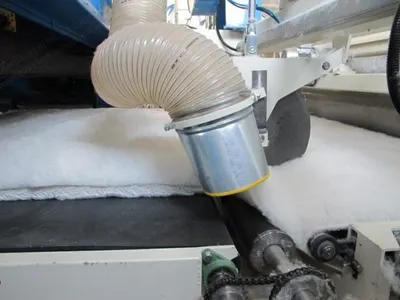

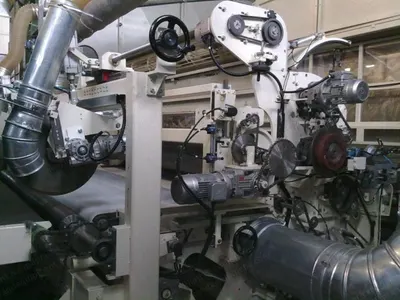

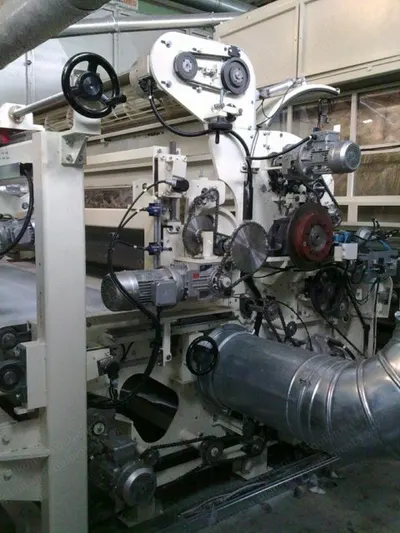

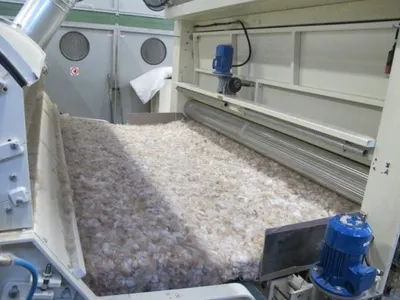

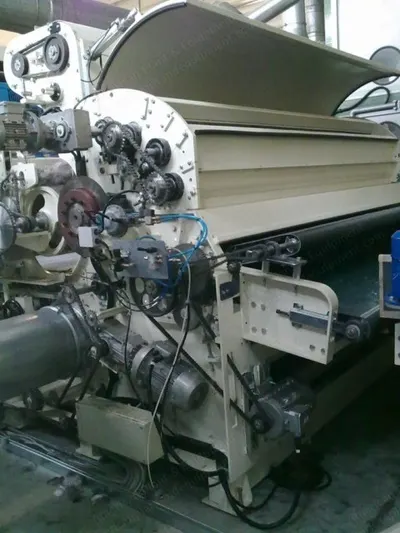

Description Overview Composed of a weighing conveyor, an air lay machine, and an edge trim slitting group. Weighing Conveyor Positioned at the feeding side of the carding machine. Composed of a pvc belt mounted on load cells, collecting the material in exit from the hopper feeder. Geared-motor complete with frequency inverter for the speed regulation. Electric control panel. Air Lay Machine Mod. Ca.40.Fw Working width 4000 mm. Complete with feeding conveyor. Entry group composed of n. 4 cylinders with saw-tooth card clothing. Main cylinder. Two couple of working and stripping cylinders. Perforated drum complete with horizontal and vertical movement. Air suction section located inside the perforated drum complete with angular movement. Upper fan. Perforated conveyor belt for the collection of the material. Upper and lower air suction fan. Edge Trim Slitting Group Located at the exit point of the carding machine. Composed of support frame. Two adjustable slitting heads, complete with circular knives, driven by a pneumatic cylinder for the adjustment of the cutting pressure. Lateral hopper connected to a fan, for the collection of edge trim waste.
