Temafa, Fiber Processing Line, 1968-2008, Carding Willow 1500mm, Flockfeeder 2000mm, High Capacity Condenser, Metal Detector, Briquetting Press

Name: Temafa, Fiber Processing Line, 1968-2008, Carding Willow 1500mm, Flockfeeder 2000mm, High Capacity Condenser, Metal Detector, Briquetting Press
Brand: Temafa
SKU: K-3582

‹ Go Back Next Product ›

Temafa, Fiber Processing Line, 1968-2008, Carding Willow 1500mm, Flockfeeder 2000mm, High Capacity Condenser, Metal Detector, Briquetting Press

Description

Overview
1. Complete line of Temafa textile machinery comprising six interconnected units.
2. All units are single items, each with its own year of manufacture.

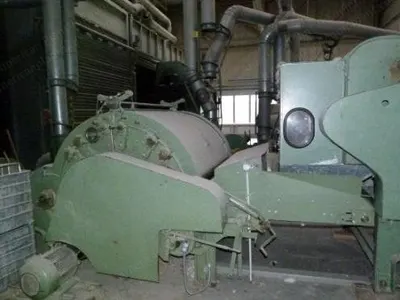

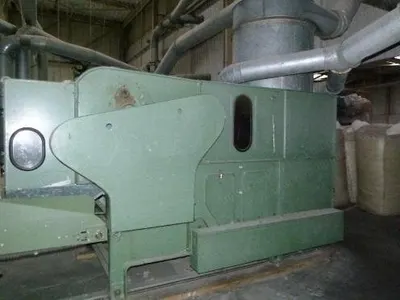

Carding Willow
1. Manufacturer: Temafa.
2. Model: Compac.
3. Working width: 1500 mm.
4. Year of manufacture: 1968.
5. Includes hopper/loader with cyclone.

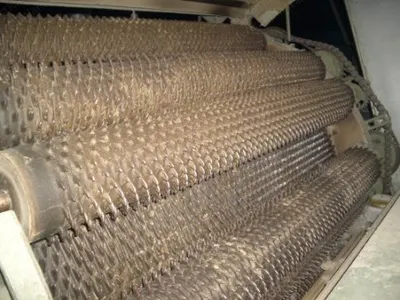

6. Main cylinder (tambour) with 6 carding rollers and 2 feeding rollers.
7. All cylinders have reinforced steel noses.
8. Fan at exit.

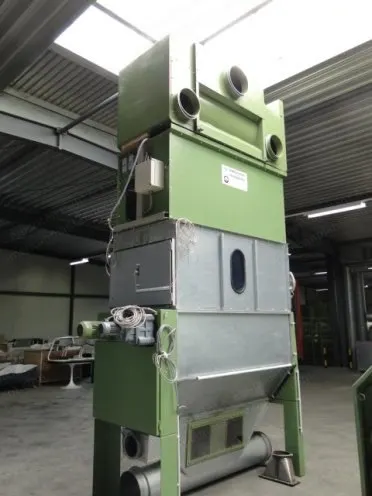

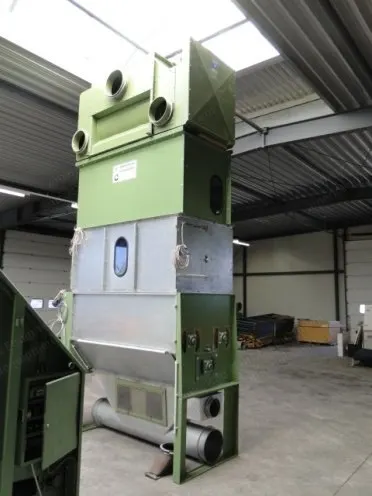

Flockfeeder / Storage Tower
1. Manufacturer: Temafa.
2. Year of manufacture: 1992.
3. Production capacity: up to 3000 kg/h.
4. Includes condenser and reserve-box.
5. Opening/feeding device with 2 cylinders and pre-opening drum with needle board.
6. Flock suction trumpet.

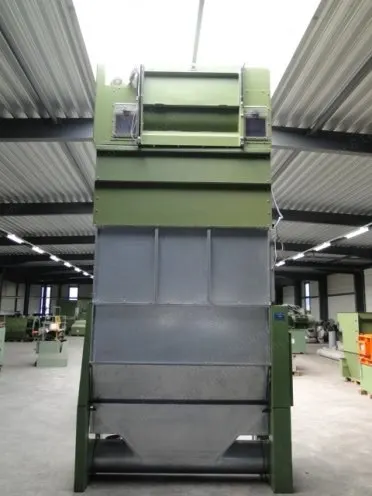

High Capacity Condenser
1. Manufacturer: Temafa.
2. Year of manufacture: 1992.
3. Width: 1200 mm.
4. Type: bucket wheel condenser.
5. Separating device operates at high performance and can be used in either suction or pressure system.
6. Ensures separation of material without air pressure.
7. Capacity: up to 3000 kg/h.
Duo-Bag Bagging Device
1. Manufacturer: Temafa.
2. Year of manufacture: 2008.
3. Ideally suited for simple bagging of fiber batches with high throughput.
4. Material is self-compressed by utilizing the conveying air.
5. Includes switch clappet for continuous changing of the bag without loss.

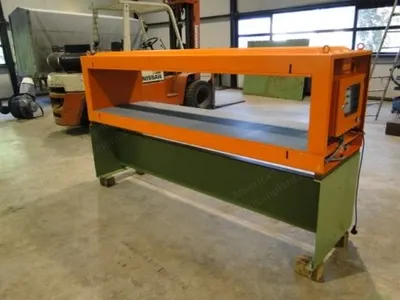

Electronic All Metal Detection Unit
1. Manufacturer: Temafa.
2. Model: Msg 4.1 Dls.
3. Year of manufacture: 1991.
4. Width: 2000 mm.
5. For flock/fibre conveyor belt, wadding, non-woven, felt, etc.
6. Measuring height: 400 mm.
7. Mounted on support.
8. Control panel for several sensibilities and speed.

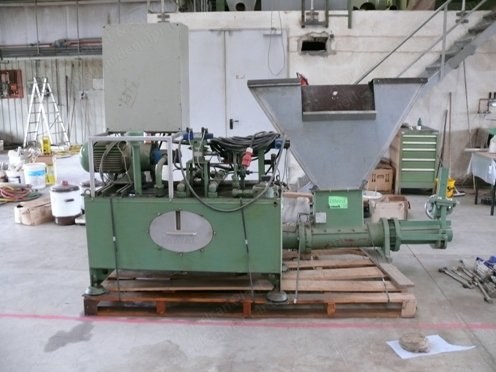

Briquetting Press
1. Manufacturer: Temafa.
2. Year of manufacture: 1987.
3. Type: hydraulic/horizontal press for dust and waste from fibres of all kinds.
4. Capacity: 80-100 kg/h.

Additional Specifications

HS code	8449.00

Specifications

Included

[{'name': 'Temafa Carding Willow', 'type': 'Compac', 'year': 1968, 'working_width': '1500mm'}, {'name': 'Temafa Flockfeeder / Storage Tower', 'year': 1992, 'capacity': 'Up to 3000 kg/h', 'working_width': '2000mm'}, {'name': 'Temafa High Capacity Condenser', 'year': 1992, 'capacity': 'Up to 3000 kg/h', 'working_width': '1200mm'}, {'name': 'Temafa Duo-Bag Bagging Device', 'year': 2008}, {'name': 'Temafa MSG 4.1 DLS Electronic All Metal Detection Unit', 'year': 1991, 'working_width': '2000mm', 'measuring_height': '400mm'}, {'name': 'Temafa Briquetting Press', 'year': 1987, 'power': '7.5 kW', 'capacity': '80-100 kg/h', 'cake_diameter': '200mm'}]
