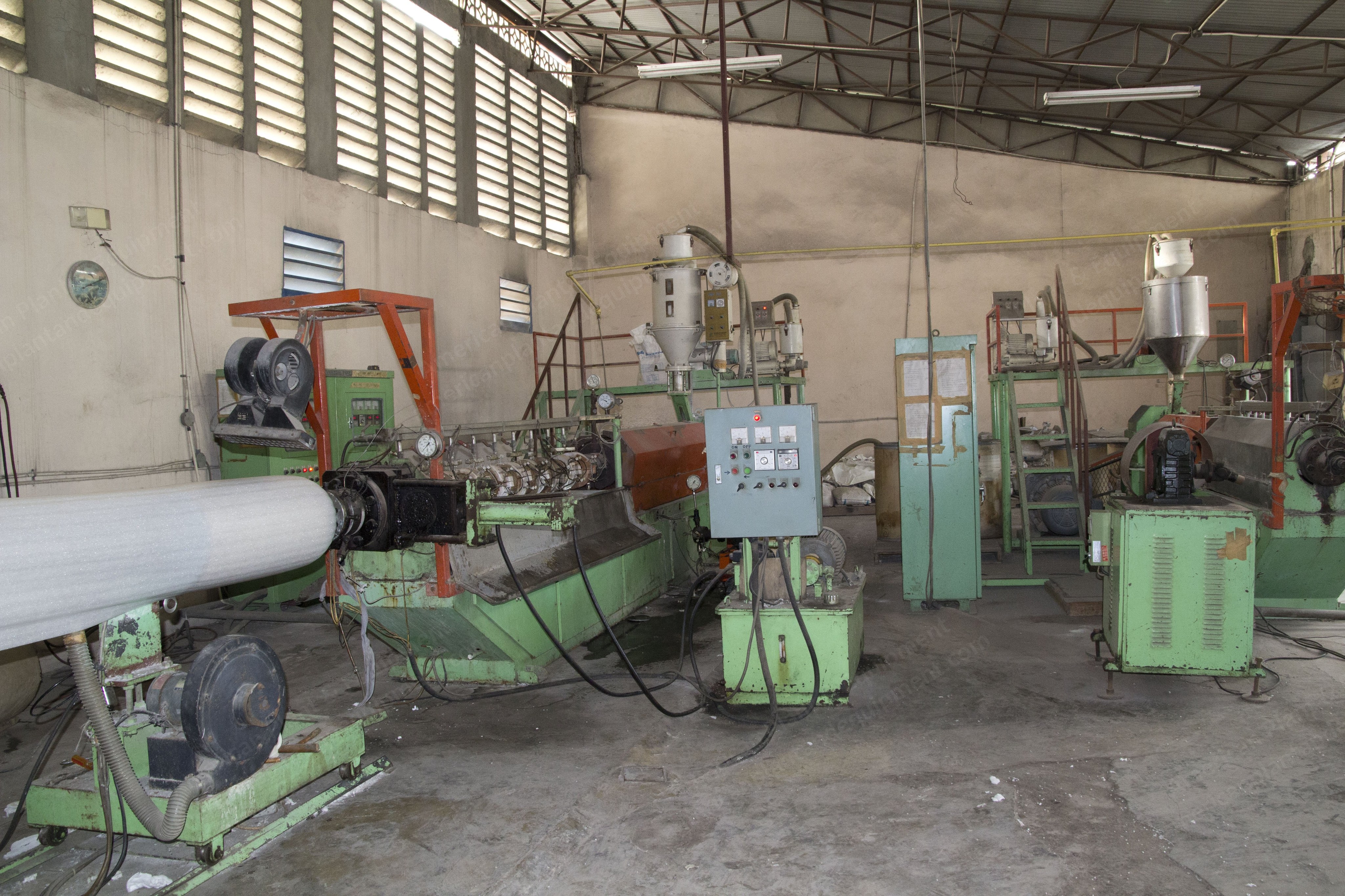

Jongbo, Polyethylene Single Screw Extrusion Plant, 1995, 65mm and 105mm Extruders, with Laminator

Jongbo, Polyethylene Single Screw Extrusion Plant, 1995, 65mm and 105mm Extruders, with Laminator

Description

  1. Section A: 65mm Extruder And Accessories
    1. Extruder 65mm with dye base, floor stand and ladder complete with hopper loader and hopper (water cooled)
    2. Gas injection pump and talc vessel
    3. Rod winder
    4. Hose take-up and net cutter
    5. Die for net/rod/hose/spare parts
    6. Control panel for extruder (65mm)
    7. Liquid foam agent injection pump
    8. Main motor for 65mm extruder
    9. Half folding machine
    10. Side sealing machine
    11. Pipe foaming machine and automatic hose cutting machine
    12. Floor space: 50 ft long x 5 ft wide
  2. Section B: Recycling Machine And Accessories
    1. Recycling machine
    2. Recycling machine main motor
    3. Recycling machine water bath
    4. Recycling machine control box
    5. Recycling machine cutting unit
    6. Large heater band
  3. Section C: 105mm Extruder And Accessories
    1. Extruder 105mm with dye base and hopper loader (water cooled)
    2. Control panel for extruder (105mm)
    3. Liquid foam agent injection pump
    4. Hopper dryer
    5. Gas injection pump and talc vessel
  4. Section D: Laminating Machine
    1. 60 in (1524mm), year 1995
    2. Laminates low density polyethylene, high density polyethylene and metalized sheets
    3. Makes a variety of thicknesses ranging from 1 to 4mm and use our bonding machine to increase up to 25mm
    4. It works in conjunction with the 105mm extruder which produces sheets
    5. Uses electricity to heat up the rod and the rod heats the plastic
  5. Section E: Accessories
    1. Lami winder
    2. Mandril die
    3. Rewinder spare parts and dyes for sheets
    4. Take up winder with antistatic fan
    5. Doubling machine with sheet garden
    6. Laminating machine
    7. Winging machine
    8. Air compressor
    9. Mixer for raw material
    10. 8 gas cylinders
    11. Screen changer
    12. Foot dye
    13. Control panel box for take-up winder
    14. 105mm dye
    15. 155mm dye
    16. 4 mesh screens: 60, 80, 100, 120 (90x90cm)
    17. Floor space: 80 ft long x 6 ft wide
  6. Section F: Water Tower And Accessories
    1. Protect P.C.T 30 cooling tower c/w stainless steel components
    2. 1 hp 50 hz motor
    3. 3 hp 1.5 x 2 x 6 centrifugal pumps 60 gpm @ 70' tdh
    4. Size 0 starters in NEMA 1 encl
    5. Bronze gate valves
    6. Bronze check valves
    7. 5 hp champion air compressor
    8. 2 kva smarts ups c/w batteries
  7. Section G: Power Supply
    1. 1 transformer
    2. 2 sets volt meters
    3. 2 sets amp meters
    4. 1 switch gear (isolator) 1000 amps
  8. Production
    1. Pe sheets (2mm x 1.55m): 600 m/hour
    2. Papaya netting: 607 m/hour
    3. Pe/hdpe laminate (3mm x 1.2m): 60 m/hour
    4. Piping cord: do not have this information but it is substantial
  9. Notes
    1. Blowing agent: butane
    2. Fruit protection foam net by special rotating die head
    3. Shipping: two 40 ft containers, one 20 ft container
    4. System was purchased in 1995 and the machines were delivered in 1996
    5. Production capacity of plant: the main product lines are sheets of various thicknesses, papaya nets and backer rods; production capacity is listed above
