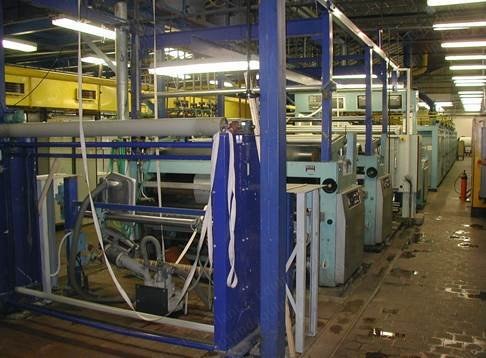

Elitex, Stenter Frame, 1990, 1800mm, 6 Chambers, Gas Heated

Elitex, Stenter Frame, 1990, 1800mm, 6 Chambers, Gas Heated

Description

  1. Overview
    1. Width: 1800 mm
    2. Year 1990, reconditioned in 2010
    3. Material: weaving and knitting goods
    4. Width of goods: 600 mm to 1800 mm
    5. Entry: unwinding of goods from the store or batching
  2. Entry and Unwinding
    1. Electronic controlled central unwinding
    2. Extension elements Erhardt + Leimer
    3. Entry part of the machine: entry Erhardt + Leimer Elektric F10
    4. Shoulder movement by electric motors controlled by drivers
  3. Foulard
    1. 1 pc double-roller foulard Elitex typ 4262.3
  4. Weft Straightener
    1. Automatic weft straightener: the weft straightener is not a part of delivery - we can supply renewed weft straightener Elitex Directomat Quatro or another
  5. Chain and Needling
    1. Chain: needle with clips including chain lubrication
    2. Needling electronically controlled by frequency converters modification for processing knitting ware
    3. Cleaning needles during machine operation
  6. Drying Chamber
    1. ½ pre-drying field
    2. 6 drying or fixing fields
    3. 1 cooling field
  7. Heating
    1. Directing gas heating Eclipse RMHP2-200 (like Brueckner)
  8. Output and Controls
    1. Output of the machine: electronic controlled central unwinding, folder
    2. Wiring: AC motors controlled by frequency converters
    3. Operating computer for drives and gas heating
  9. Electrical Specifications
    1. Voltage: 3 x 380 V, 50 Hz
