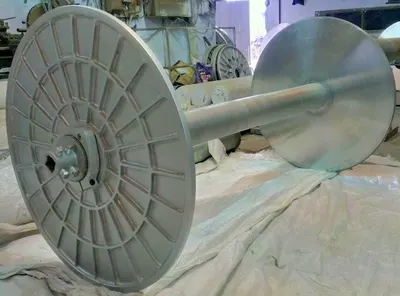

Description Overview Twin weaver beams suitable for 3300mm Sulzer weaving loom Quantity: 2 sets Flanges Material of flanges: sp. aluminium alloy Diameter of aluminium flanges: 800mm Thickness of flanges: 25mm Construction of aluminium flanges: die-casted, solid type having re-inforced ribs at outer side and buffing polished at inner side Number of movable aluminium flanges: 2 movable flanges with bore diameter of 150mm Number of fixed aluminium flanges: 2 fixed flanges having bore diameter of 75mm Barrels Diameter of barrels: 150mm Material of barrels: heavy gauge m. s. seamless tube, duly machine polished, statically balanced and zinc oxide plated Wall thickness of barrels: 7-8mm Length of barrels: 1650mm Threads on barrel: square pitch threads on single side of barrel diameter will be provided for width adjustment End Shields Steel end shields having 47 x 47mm square hole, duly shrink fitted as well as welded at both ends of barrel Additional Components Material of lock nut: s. g. i. casted, clamping type Material of centre connecting disc: carbon steel tempered and ground L. n. bolts: the entire beam will be fitted with high tensile bolts Weight Overall weight of beams: 270 kgs per set
