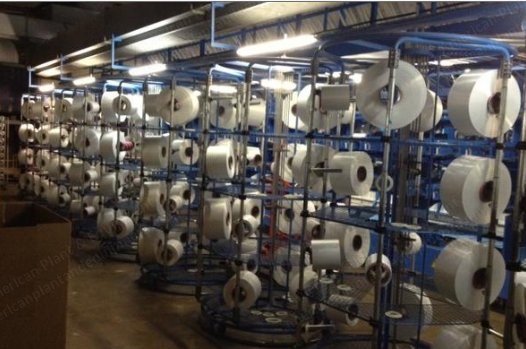

RPR, 3 SD 2000, 1999, 216 Spindles, 1200 m/min Max Speed, Auto Doffing

RPR, 3 SD 2000, 1999, 216 Spindles, 1200 m/min Max Speed, Auto Doffing

Description

  1. Overview

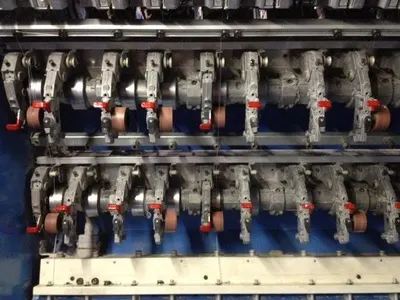

    1. Number of spindles: 216 (texturation 1 end)
    2. 9 sections
    3. 24 spindles per section

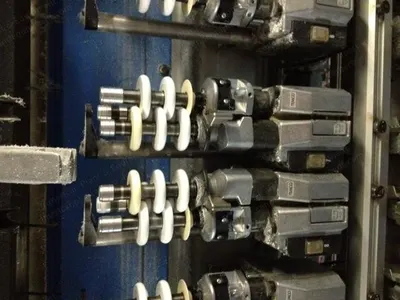

    4. Spindle type: FTS 525 ME
  2. Specifications
    1. Max speed reception: 1200 m/min

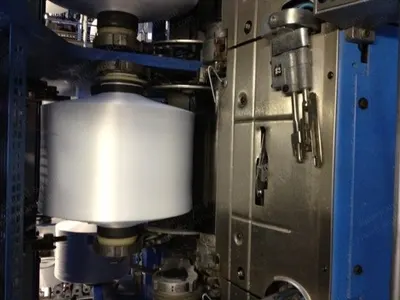

    2. Dimension tube of reception: L = 289 mm; dia int = 69 mm; diam bourlet = 57 mm

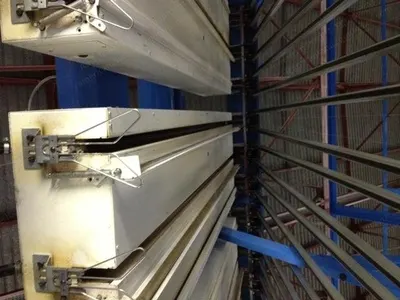

    3. Length 1st heater: 2000 mm
    4. Temperature 1st heater: 140 to 240 °C
    5. Length 2nd heater: 1300 mm
    6. Temperature 2nd heater: 140 to 240 °C
    7. Precision of temperature: +/- 1
    8. L maxi coold piste: 1200 mm
    9. Dimension of the machine: H: 4610 mm; L: 12,710 mm; 18,050 mm
    10. Power total installed: 2456 kW
    11. Power needed when running: 160 kW
  3. Features
    1. Auto doffing

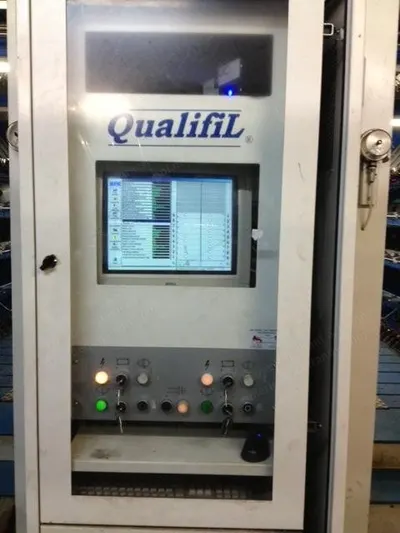

    2. Online control
