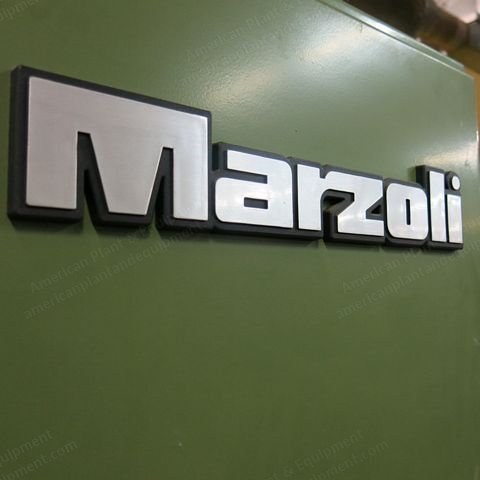

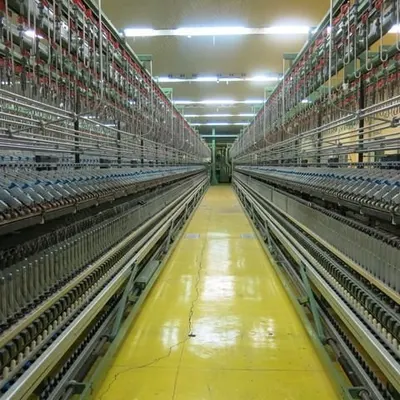

Marzoli, Schlafhorst, 1998, 624 Spindles, Ring Diam. 54mm, Linked to Schlafhorst AC 238 Winder

Marzoli, Schlafhorst, 1998, 624 Spindles, Ring Diam. 54mm, Linked to Schlafhorst AC 238 Winder

Description

  1. Overview
    1. Marzoli spinning frames year 1998
    2. 624 spindles each machine
    3. Linked with Schlafhorst AC 238 system automatic link winder
    4. 26 spindles fitted on the frame
    5. Year 1998
    6. Model GKU
    7. Type 147.2
    8. Frame for 30 spindles

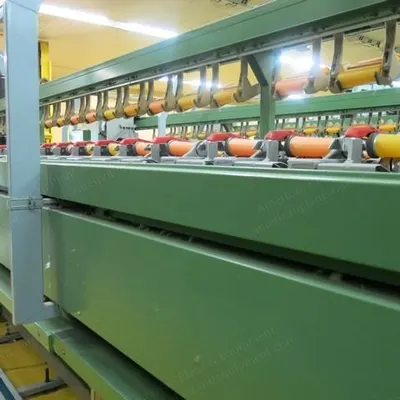

  2. Spinning Frame Specifications

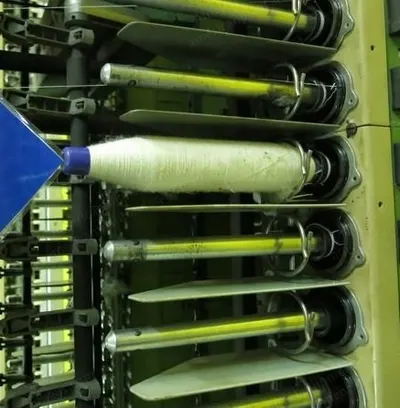

    1. Feeding creel for roving tube 6” x 16”
    2. 6 lines of bobbin holders Marzoli

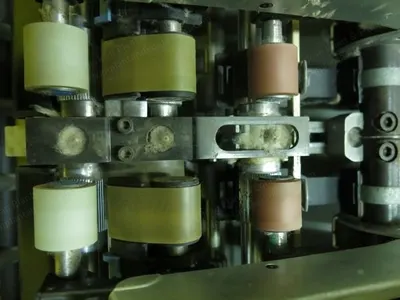

    3. Drafting device Tex Parts PK 2025
    4. Drafting device 3 over 3
    5. Fani sliverstop device fitted on all the machine
    6. Medium cradle
    7. Yellow clips on side Tex Parts
    8. Suction of the yarn by flute
    9. Top rollers Armstrong type J490
    10. Suspended flyers drive by belts
    11. Spindles lift 235 mm
    12. Spindles tube lift 250 mm
    13. Rings diam. 54 mm flange 1 (new in boxes by Borgosesia rings)
    14. Automatic doffing integrated Marco Polo Spin Doff
    15. Mani motor drive by frequency inverter
    16. Voltage 380.3.50 Hz

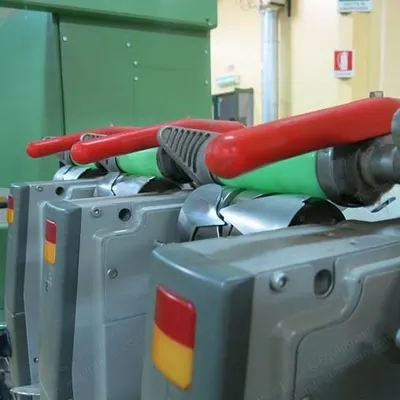

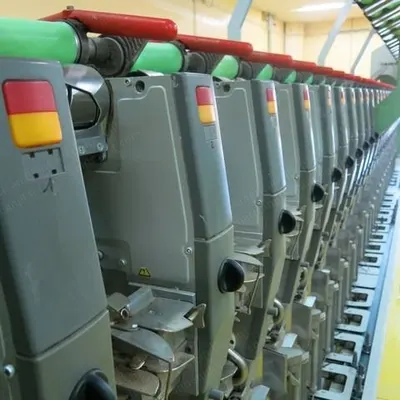

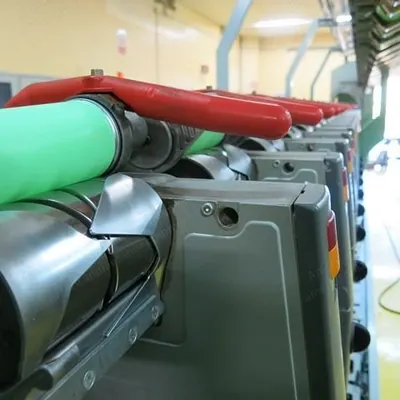

  3. Link Winder Specifications
    1. Feeding by caddy 21 / 23
    2. Antiballon device electronic
    3. Splicer
    4. Uster clearers Polymatic UPG5
    5. Take up 1º51
    6. 6” traverse
    7. 1 doffer for cones
    8. Voltage 380.3.50 Hz
  4. Condition
    1. Predisposed for centralized waste collection
  5. Included Accessories

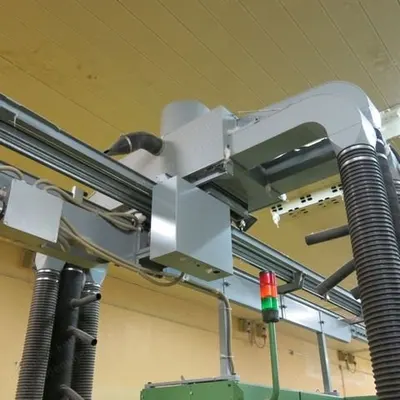

    1. 1 Magitex travelling cleaner complete with rail from the spinning frame
    2. 1 Magitex travelling cleaner complete with rail from the winder
    3. 1 fan HP 7.5 for fibre extraction
    4. 1 FKA LTG Faser compactor for fibres collection of the Magitex and Pneumafil
    5. 1 set of catalogue (instruction manuals, spare parts book and electrical diagrams)
    6. 1 Siemens apron spare to upload the program of the PLC
    7. 1 CSM 90 Caipo electronic slubs device with his control panel
