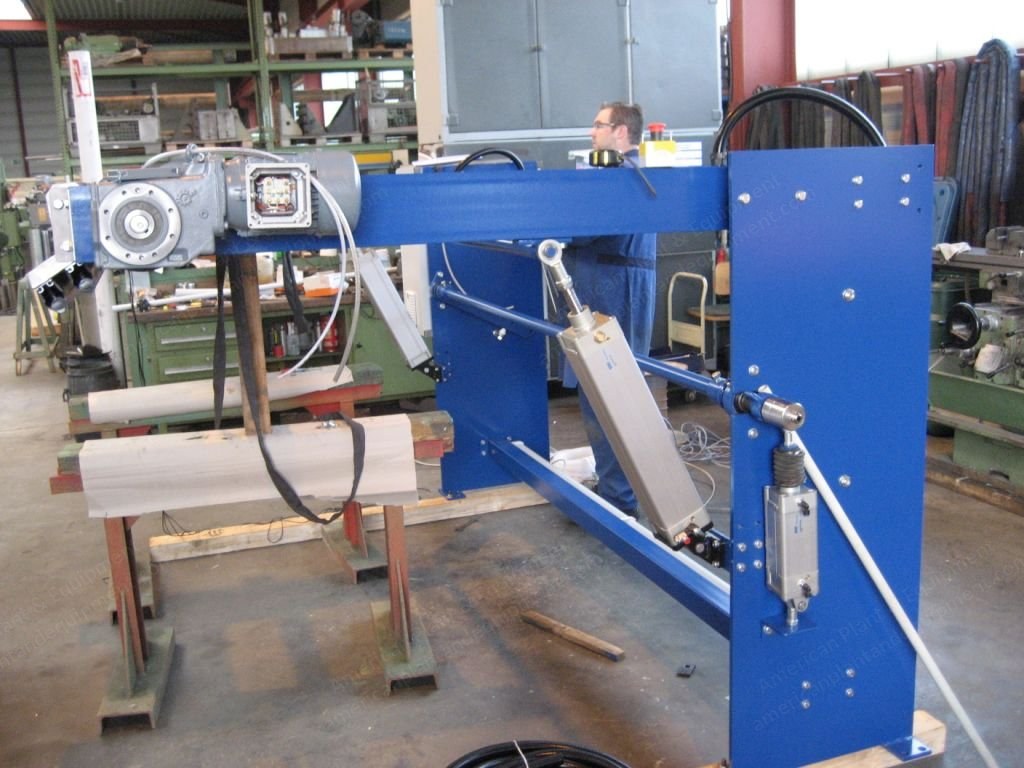

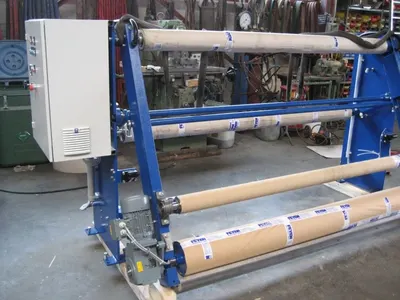

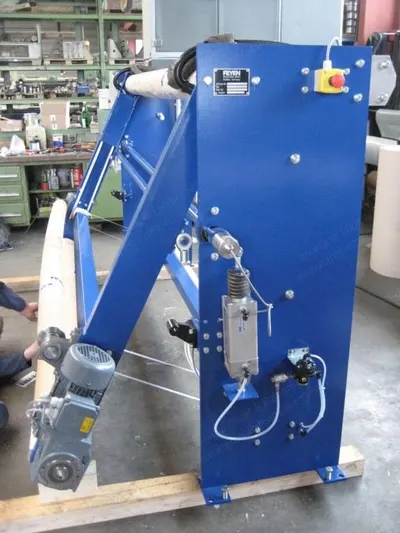

Sochor, 581.46, Surface Winder, 2000mm Working Width, 2200mm Roller Face Width, 60 m/min

Sochor, 581.46, Surface Winder, 2000mm Working Width, 2200mm Roller Face Width, 60 m/min

Description

  1. Overview
    1. For installation behind a brushing or sueding machine
    2. Operating side: right
    3. Color: RAL 6011 or as per customer request
  2. Specifications
    1. Roller face width: 2200 mm
    2. Maximum skein diameter: 1800 mm
    3. Speed: 60 m/min
    4. Electrical: 3x400 V, 50 Hz
  3. Mechanical Components

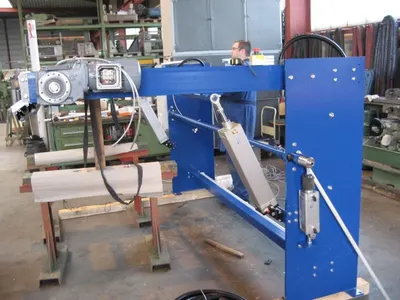

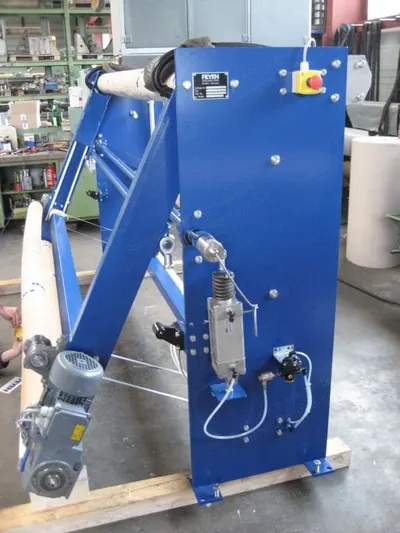

    1. 2 steel frames with traverses
    2. 2 swivel arms
    3. 1 winder roll with rubber cover, diameter 210 mm
    4. 1 pneumatic lifting and lowering device for winder roller
    5. 1 hand protecting plate at outlet with safety edges
    6. 1 cloth guiding consisting of: 2 guide rollers, 1 bended expander, 1 pendulum roll control with pneumatic charger and discharger
  4. Drive and Control

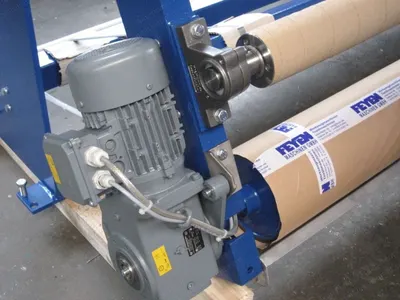

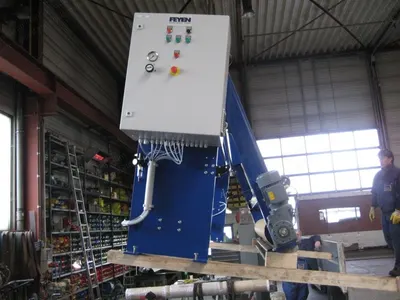

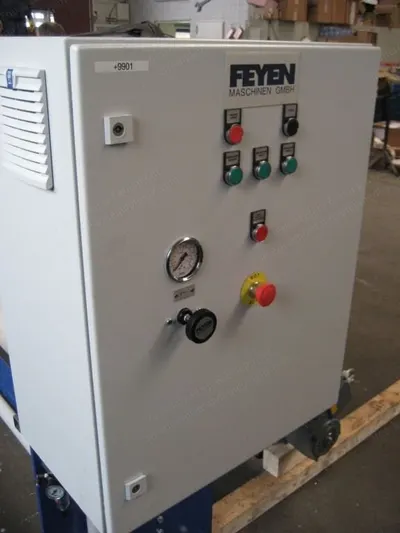

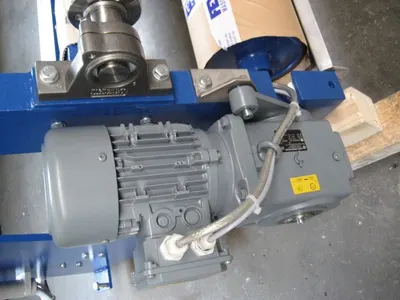

    1. 1 electric drive with control consisting of: 2 gear drives to be mounted on the journals of the winder roll, 1 frequency control, 1 control
