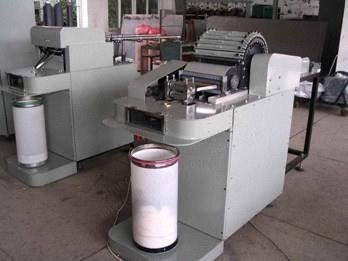

NovaStar, CR139, Laboratory Carding Machine, Cylinder Size 300x250mm, 220/380V (New)

NovaStar, CR139, Laboratory Carding Machine, Cylinder Size 300x250mm, 220/380V

Description

  1. Overview
    1. Machine name: 1-t laboratory carding machine
    2. Model: 1 t
    3. Basic function: fed with cotton (or polyester) fiber, carding web evenly
  2. Technical Specifications
    1. Control method: touch screen + PLC
    2. Fiber length: 22mm to 42mm
    3. Output: about 0.25 to 1 kg
    4. Cylinder size: Φ300mm × 250mm
    5. Cylinder speed: 1000 rpm
    6. Doffer size: Φ160mm × 250mm
    7. Total power: 1200W
    8. Output mode: extending cotton web
    9. Voltage: 220/3 × 380V AC, 50/60Hz
    10. Machine dimensions: 2100mm × 800mm × 1300mm
