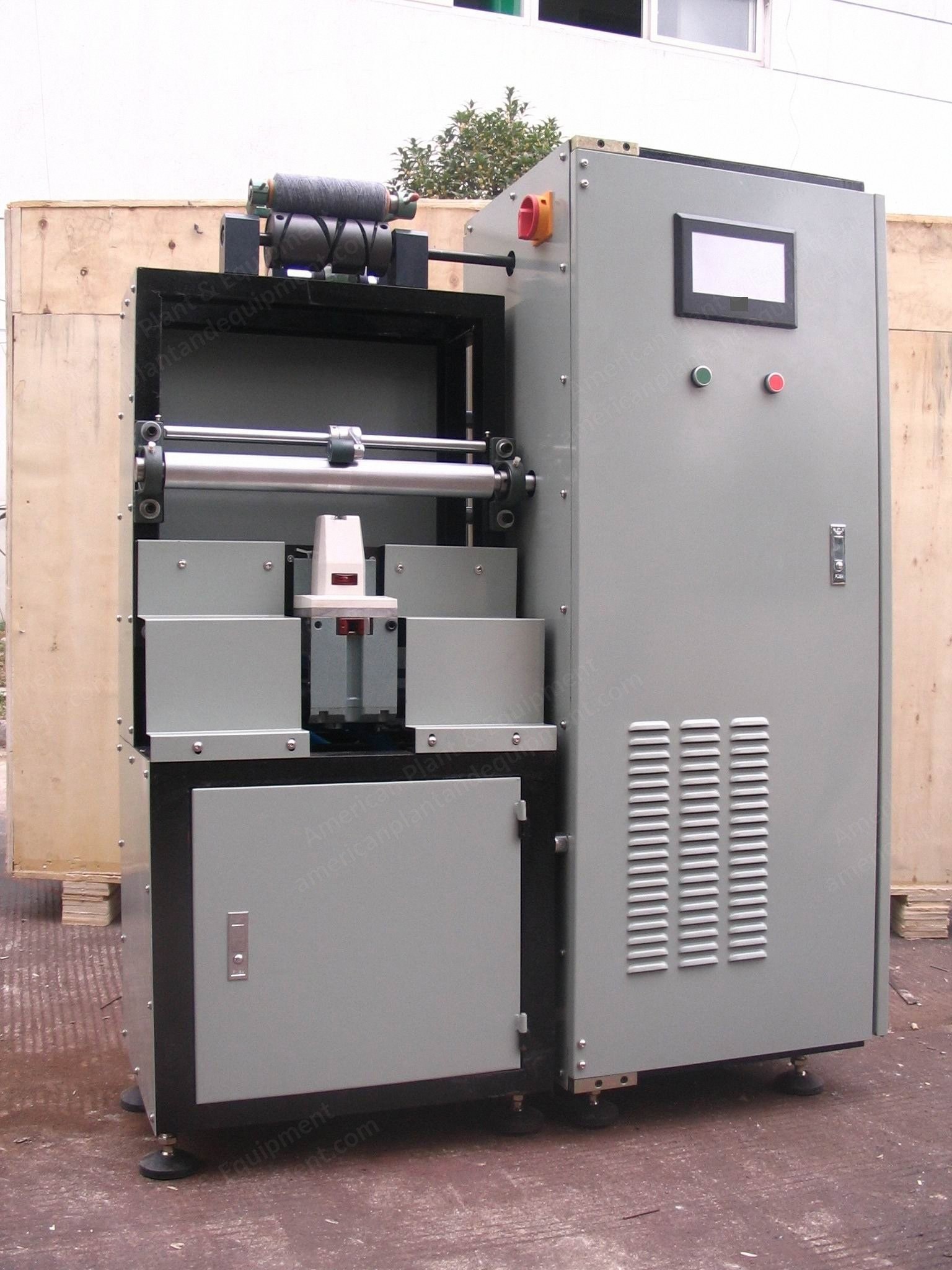

NovaStar, TL131, Laboratory Rotor Spinning Machine, 1 Spindle, 30000 RPM, 800x600x1700mm (New)

NovaStar, TL131, Laboratory Rotor Spinning Machine, 1 Spindle, 30000 RPM, 800x600x1700mm

Description

  1. Overview
    1. Machine name: TL131 laboratory rotor spinning machine
    2. Model: TL131
    3. Basic function: To spin cotton into OE yarn
  2. Technical Specifications
    1. Control: Touch screen + PLC + inverter
    2. Spindle number: 1
    3. Fiber length: 22 mm to 42 mm
    4. Output: About 0.25 kg to 1 kg
    5. Rotor speed: 30000 rpm
    6. Opening roller speed: 6000 rpm
    7. Take-up speed: 20-110 m/min
    8. Drafting ratio: 30-250
    9. Total power: 640 W
    10. Voltage: 220/3×380 V AC, 50/60 Hz
    11. Machine dimensions: 800 mm × 600 mm × 1700 mm
