NovaStar, TL133, Laboratory Cotton Yarn Spinning Machine, 4/6/8/12 Spindles, 12000 RPM, 1000x800x1600mm (New)

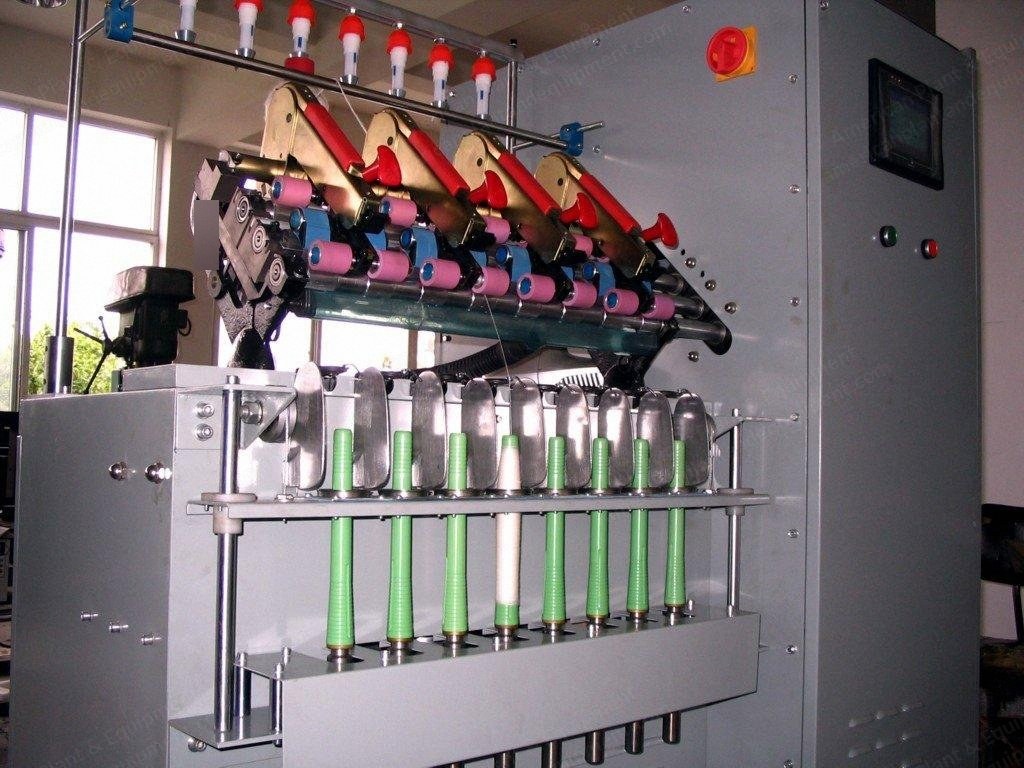

NovaStar, TL133, Laboratory Cotton Yarn Spinning Machine, 4/6/8/12 Spindles, 12000 RPM, 1000x800x1600mm

Description

  1. Overview
    1. Spins plied yarn into fine yarn through drafting and loop spinning
  2. Control
    1. Touch screen and PLC control
  3. Specifications
    1. Number of spindles: 4/6/8/12
    2. Twisting degree: about 200-2000 times per meter
    3. Drafting range: about 2-50
    4. Fiber length: 22 mm to 42 mm
    5. Output: about 0.25 kg to 1 kg
    6. Spindle speed: 12000 rpm
    7. Roller size: Φ25/25/25 mm
    8. Ring size: Φ38-45 mm
    9. Total power: 550 W
    10. Voltage: 220/3×380 V AC, 50/60 Hz
    11. Machine dimensions: 1000 mm × 800 mm × 1600 mm
