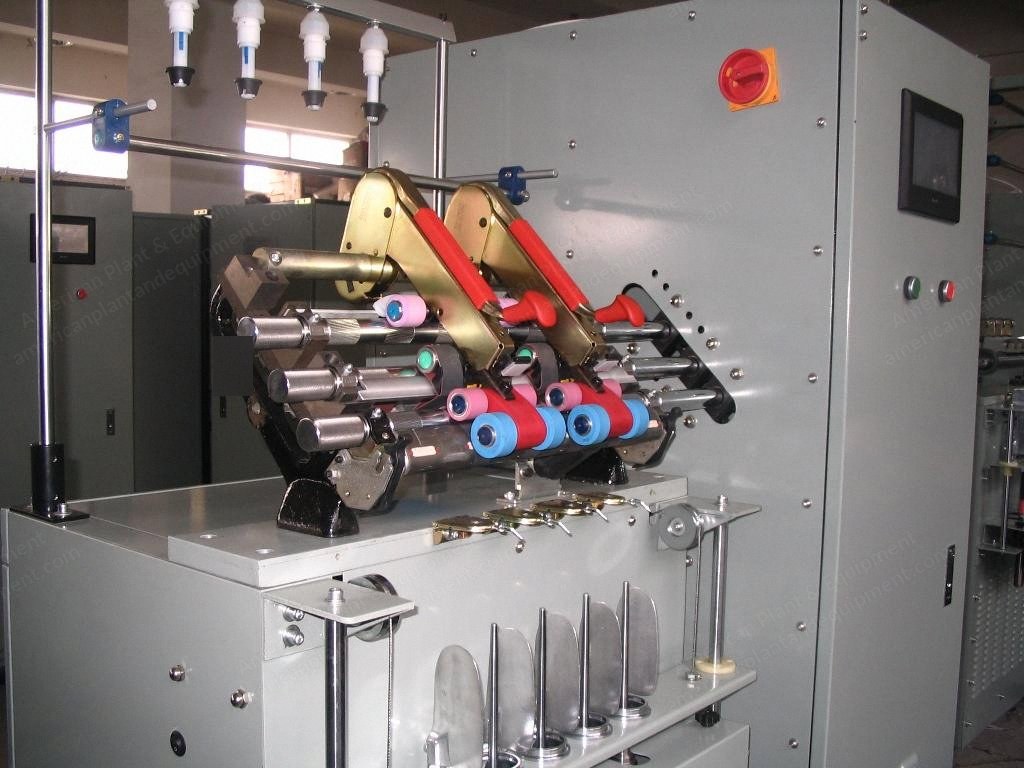

NovaStar, TL134, Laboratory Multi-Functional Spinning Machine, 4/6 Spindles, 12000 RPM, 1000x800x1600mm (New)

NovaStar, TL134, Laboratory Multi-Functional Spinning Machine, 4/6 Spindles, 12000 RPM, 1000x800x1600mm

Description

  1. Overview
    1. Compact spinning device to spin plied yarn into fine yarn through drafting and ring spinning
    2. Control: touch screen + PLC
  2. Specifications
    1. Number of spindles: 4/6
    2. Twisting degree: about 200-2000 times/meter
    3. Drafting range: about 2-50
    4. Fiber length: 22 mm to 42 mm
    5. Output: about 0.25 kg-1 kg
    6. Spindle speed: 12000 rpm
    7. Roller size: Φ25/25/25 mm
    8. Ring size: Φ38-45 mm
    9. Total power: 550 W
    10. Voltage: 220/3×380 V AC, 50/60 Hz
    11. Machine dimensions: 1000 mm × 800 mm × 1600 mm
