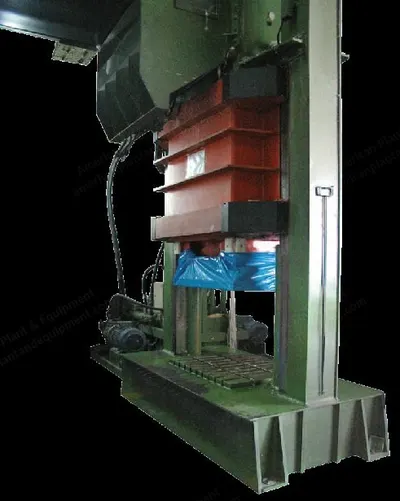

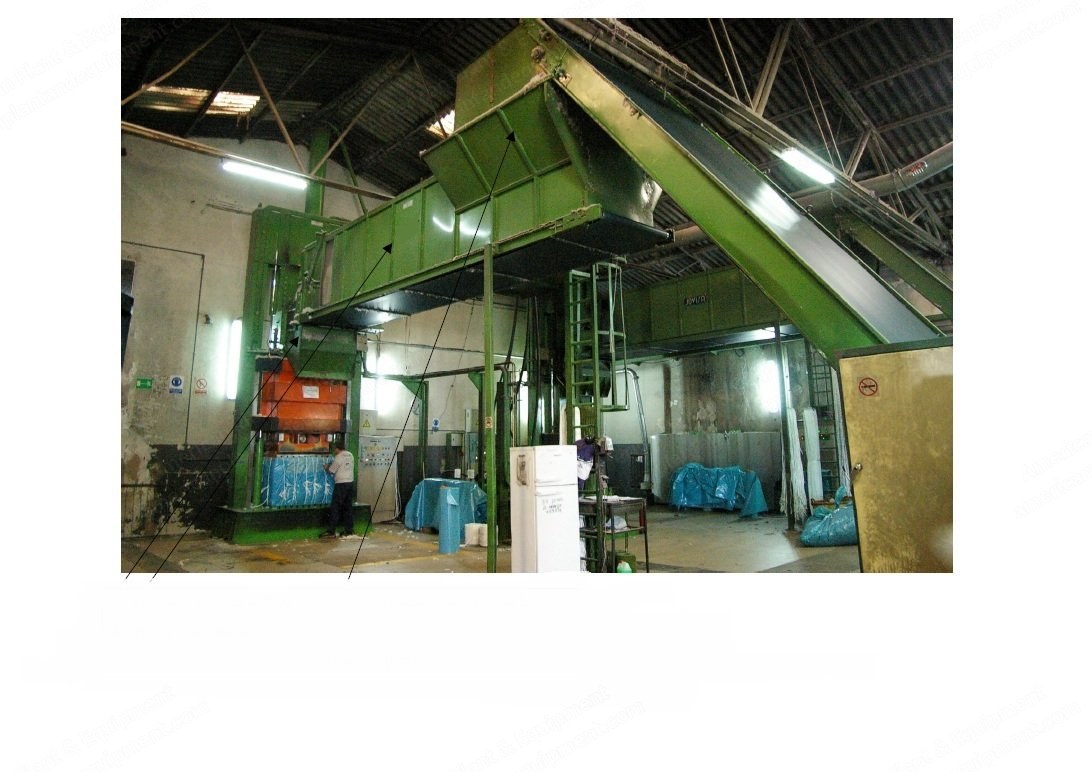

Jovisa, PF-1150-200, Packing Press for Wool Fibers, 200 Ton, 1150x750x1000mm Bale Size (New)

Jovisa, PF-1150-200, Packing Press for Wool Fibers, 200 Ton, 1150x750x1000mm Bale Size

Description

  1. Overview
    1. Totally automatic, with Rexroth hydraulic group
    2. Hydraulic group provided with two 30 cv motors, 200 tn power variable duty and constant power
    3. Bale size of 1150 x 75 mm and number of wires 9+2

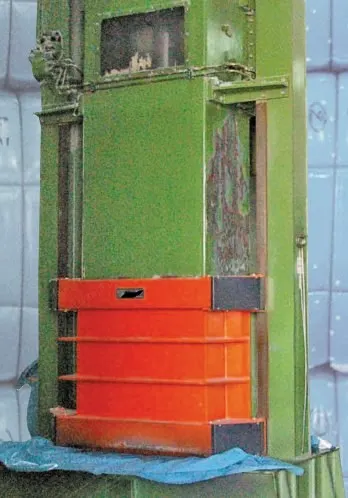

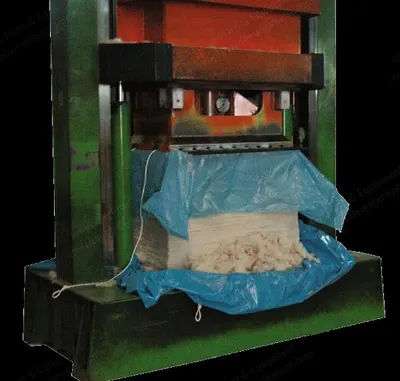

    4. Double pressing box press where, in order to retrieve the packing, box slides along the outside of the other
    5. Special processing augments the resistance of the upper box and avoids problems between the two various models of pit press according to requirements

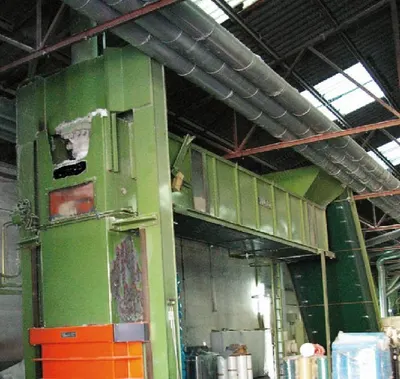

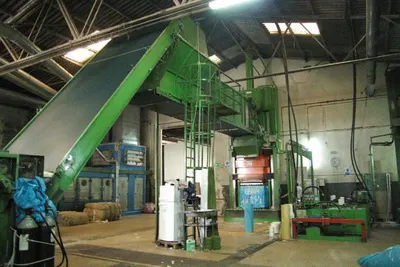

    6. Operating loaders of fibres with widths from 1 to 2 meters with inclinable material holder with variable grip for a better regulation of the measurement and load
  2. Hydraulic System
    1. Hydraulic groups with totally exterior block assembly, the “Logicos” material norma Cetop system with water-oil refrigeration
    2. Hydraulic group motor 2 x 30 hp (45 kW)
    3. Hydraulic assembly block outer
    4. Hydraulic material according to C.E.T.O.P. rules
    5. Pumps pistons, variable discharge, constant power
    6. Maximum permissible pressure 360 kg/cm²
    7. Working pressure range 300 kg/cm² to 100 kg/cm²
    8. Feeding system hydraulic
    9. Feeding by accumulator
    10. Accumulator press syncronism incorporated
  3. Electrical System
    1. Electric handling by means of programmable automation that controls all the functions
    2. Top grade electrical equipment with a first class regulation
    3. Motor protection IP-55
    4. Electric manoeuvre by programmable logique control

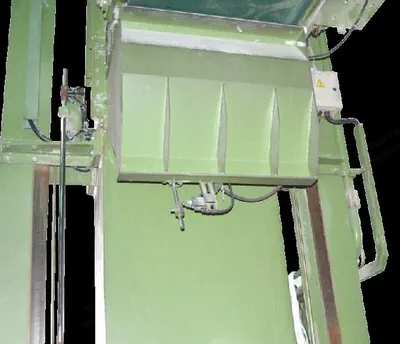

    5. Material loading control by ultrasound
    6. Ultrasonic loading control
  4. Specifications
    1. Power 200 tn
    2. Bale dimensions 1150 x 750 x 1000 mm
    3. Number of wires 9 + 2
    4. Feeding conveyor motor 2 hp (1.5 kW)
    5. Main cylinder chroming and tinned
    6. Structure electrowelded
    7. Pressing box shoe guided
    8. Pressing box movement hydraulic
    9. Feathers incorporated
    10. Working system automatic and manual
    11. Machine weight about 20,000 kg
    12. Oil volume 1000 liter
  5. Condition and Finish
    1. Shallow treatment high hardness priming with double coat
    2. Final treatment green paint RAL-6017
  6. Included
    1. Transport tape for textiles with a double or single tape system
