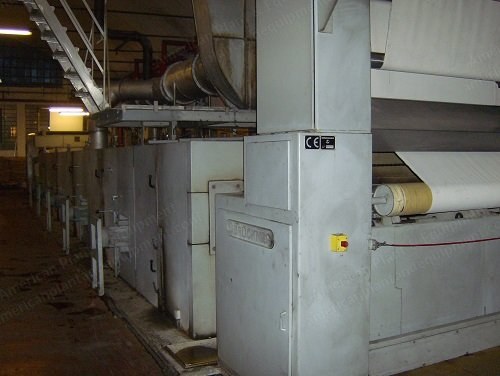

Bruckner, 1996, 2000mm Roller Width, 1800mm Max Fabric Width, 5 Compartments, Oil Heated

Bruckner, 1996, 2000mm Roller Width, 1800mm Max Fabric Width, 5 Compartments, Oil Heated

Description

  1. Overview
    1. Roller width: 2000 mm
    2. Maximum fabric width: 1800 mm
    3. Year of construction: 1996
  2. Fabric Entry Assembly
    1. Frame with relevant device suitable to take over the fabric from trolley or big roll
    2. System in combination including one expanding double spreader roller
    3. One centering cylinder type Dogal and relevant sensor
  3. Impregnation Padder
    1. Second hand 02 rollers impregnation padder, year of construction 1996
  4. Weft Straightener
    1. Optical weft straightener made by Mahlo, type FMC, year of construction 1996
  5. Pin Chain
    1. Bruckner vertical return pin chain including one anti-depinning device each link
    2. Left and right chain driven by means of one electrical motor frequency converter controlled
    3. Length of entrance field: 3 m
    4. Length of exit field: 4 m
    5. One left and one right overfeeding device at the entrance, each controlled by means of frequency converter
  6. Dryer
    1. Consisting of 05 compartments (3 meter each one)

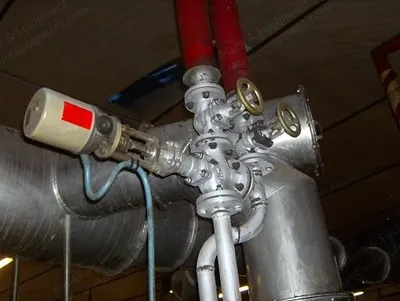

    2. Heating system by means of oil heating exchangers
    3. 02 air circulation fans each compartment with the motor of ventilator at 02 speed
  7. Exit and Control
    1. One plaiter at the exit

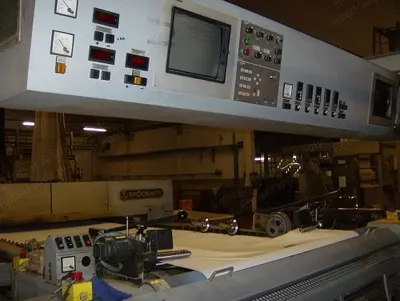

    2. Permaset auto-pilot control made by Mahlo for automatic thermo-fixation of the fabric
    3. Probes made by Mahlo installed inside the dryer
    4. Exhaust fan motor at 02 speed
