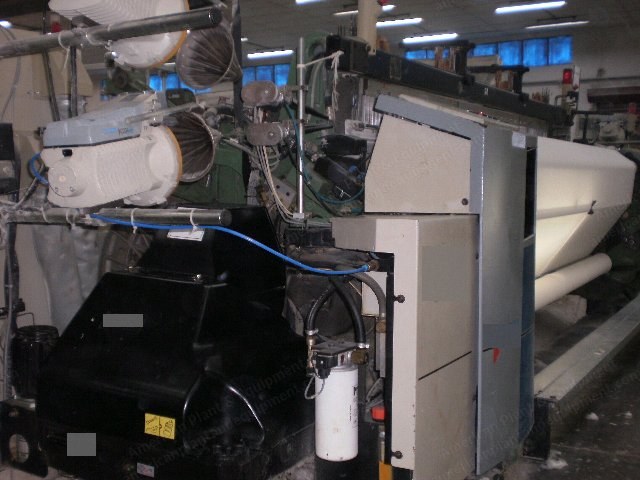

Picanol, Omni Plus 2-P, 2003, 2500mm, 2 Colors, Staubli Cam Motion 1661

Picanol, Omni Plus 2-P, 2003, 2500mm, 2 Colors, Staubli Cam Motion 1661

Description

  1. Overview
    1. Year 2003
    2. Width: 2500 mm
    3. Speed up to 750 rpm, double 48” grey width running
    4. Multi speed
  2. Specifications
    1. Staubli cam motion 1661 - 8 levers installed 2/1, 1/2 cams
    2. 4 color - 2 Iro 1131 plus
    3. 1.5 warp beam 914 mm diameter
    4. 4 heald frames - J type 331 mm drc2 type
    5. 6 electrical warp stop motion bars
    6. 5000 healds and droppers
    7. Elsy right
    8. Pft, full width lip in reed profile
    9. Aic-q, full width relay nozzles
    10. 2 filling detectors
    11. Rotory leno device
    12. Double whip rolls
    13. Blf backrest with positive easing motion
    14. Electronic take up
    15. 1.5 cloth roll
  3. Condition
    1. Used industrial machine
  4. Included
    1. Quantity: 12
    1. Contact for pictures
