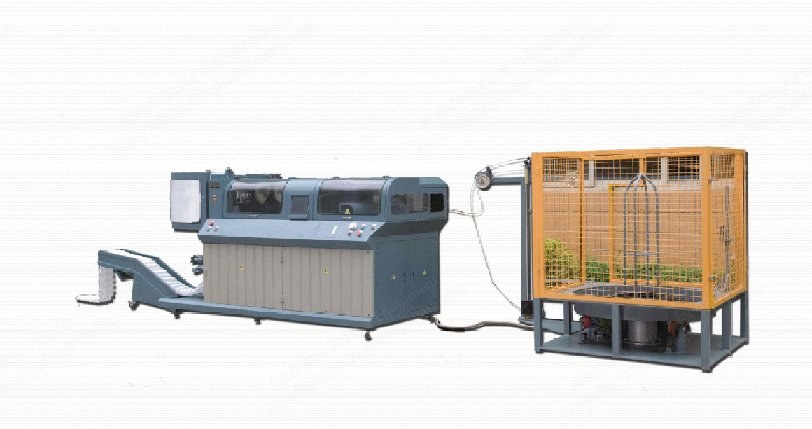

NovaStar, SB194, Pocket Spring Machine, 70-75 springs/min, 1.6-2.2mm Wire Gauge, 23kW (New)

NovaStar, SB194, Pocket Spring Machine, 70-75 springs/min, 1.6-2.2mm Wire Gauge, 23kW

Description

  1. Overview
    1. Servo controlled coiling head
    2. Computerized spring data setting system and saving system
    3. Available for springs in hour-glass shape, pyramid shape, pps type and so on (special option, if desired)
    4. Zoning pocket spring string is possible (special option, if desired)
  2. Specifications
    1. Production capacity: 70-75 springs/min
    2. Coiling head: one servo coiling head
    3. Working principle: servo control
    4. Spring shape - standard version: barrel and cylindrical; customized versions: hour-glass shape, pyramid shape, pps shape and so on
    5. Air consumption approx. 48 m³/h
    6. Air pressure 0.6-0.7 mpa
    7. Power consumption in total approx. 23 kw
    8. Power requirements: voltage 3ac 380v, frequency 50/60 hz, input current 35 a, cable section 4 x 10 mm² + 1 x 6 mm²
    9. Working temperature +5 °c to +45 °c
    10. Weight approx. 2100 kg
  3. Consumption Material Data
    1. Non-woven fabric: fabric density 65-90 g/m², fabric width 220-600 mm, inner dia. of fabric roll min. 60 mm, outside dia. of fabric roll max. 60 mm
    2. Steel wire: wire gauge 1.6-2.2 mm, inner dia. of fabric roll min. 320 mm, outside dia. of fabric roll max. 1000 mm, acceptable weight of fabric roll max. 800 kg
  4. Working Range
    1. Standard options: hx-01 (wire diameter 1.6-2.1 mm, spring waist diameter 55-70 mm, pocket spring height standard 80-140 mm)
    2. Standard options: hx-02 (wire diameter 1.6-2.1 mm, spring waist diameter 55-70 mm, pocket spring height standard 120-180 mm)
    3. Standard options: hx-03 (wire diameter 1.6-2.1 mm, spring waist diameter 60-75 mm, pocket spring height standard 80-140 mm)
    4. Standard options: hx-04 (wire diameter 1.6-2.1 mm, spring waist diameter 60-75 mm, pocket spring height standard 120-180 mm)
    5. Standard options: hx-05 (wire diameter 1.6-2.1 mm, spring waist diameter 60-75 mm, pocket spring height standard 140-200 mm)
    6. Special options: hx-s1 (wire diameter 1.3-1.6 mm, spring waist diameter 45-55 mm, pocket spring height standard 70-120 mm)
    7. Special options: hx-s2 (wire diameter 1.3-1.6 mm, spring waist diameter 45-55 mm, pocket spring height standard 120-180 mm)
    8. Special options: hx-s3 (wire diameter 1.0-1.4 mm, spring waist diameter 37-45 mm, pocket spring height standard 120-160 mm)
    9. Special options: hx-s4 (wire diameter 1.6-2.1 mm, spring waist diameter 50-60 mm, pocket spring height standard 180-230 mm)
    10. Special options: hx-s5 (wire diameter 1.6-2.1 mm, spring waist diameter 60-70 mm, pocket spring height standard 180-230 mm)
    11. Special options: hx-s6 (wire diameter 1.6-2.1 mm, spring waist diameter 50-60 mm, pocket spring height standard 220-260 mm)
    12. Special options: hx-s7 (wire diameter 1.6-2.1 mm, spring waist diameter 60-70 mm, pocket spring height standard 220-260 mm)
    13. Special options: hx-s8 (wire diameter 1.0-1.5 mm, spring waist diameter 30-35 mm, pocket spring height standard 45-70 mm)
    14. Special options: hx-s9 (wire diameter 1.0-1.4 mm, spring waist diameter 28-30 mm, pocket spring height standard 100-150 mm)
