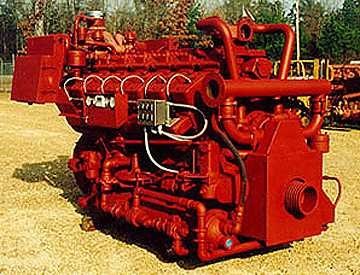

Waukesha, L7042GSI, 1000kW, Natural Gas Engine, 12 Cylinders, 1000 RPM

Waukesha, L7042GSI, 1000kW, Natural Gas Engine, 12 Cylinders, 1000 RPM

Description

  1. Overview
    1. Rebuilt Waukesha VHP series model L7042GSI engines
    2. Turbocharged and intercooled
    3. Natural gas fueled engines
    4. 9.375" bore x 8.5" stroke
    5. 12 cylinders
    6. 7041 cubic inch displacement
    7. Rated 1108 bhp
    8. 1000 rpm, continuous load
    9. 50 hz
  2. Specifications
    1. Air cleaner: dry type with rain shield and service indicator, engine mounted
    2. Barring device: manual
    3. Bearings: heavy duty, replacement, precision type
    4. Breather: closed system
    5. Carburetor: dual, natural gas 4" updraft
    6. Connecting rods: drop forged steel, rifle drilled
    7. Crankcase: internal crankcase and cylinder frame, main bearing caps drilled and tapped for temperature sensors (does not include sensors)
    8. Crankshaft: forged steel, seven main bearings
    9. Cylinders: removable wet type bainitic cast iron cylinder liners, chrome plated on outer diameter
    10. Cylinder heads: twelve interchangeable, valve-in head type, two hard faced intake and two hard faced exhaust valves per cylinder, hard faced intake and exhaust valve seats inserts, roller valve lifters and hydraulic push rods
    11. Engine rotation: counterclockwise when facing flywheel
    12. Engine monitoring devices: magnetic pick-up wired for tachometer, lube oil pressure and intake manifold pressure sensing
    13. Flywheel: with 208 tooth ring gear
    14. Flywheel housing: no. 00 sae
    15. Fuel system: fisher model 202 npt low pressure regulators, 25 psi inlet pressure required
    16. Gauge panel: murphy switch gauges for jacket water temperature, lube oil pressure, lube oil temperature, altronic digital tach overspeed
    17. Governor: woodward eg3p hydraulic
    18. Ignition: altronic iii (non shielded)
    19. Intercooler: air-to-water
    20. Lifting eyes: for engine only
    21. Lubrication: full pressure, gear type pump, full flow filter, 36 gallon capacity shipped loose with flexible connections, includes lube oil strainer mounted on engine, engine mounted air/gas motor driven prelube pump requires final piping
    22. Manifolds: exhaust water cooled
    23. Oil cooler: 10 inch
    24. Oil pan: base type seventy-eight (78) gallon capacity including filter
    25. Pistons: aluminum with full floating pin, oil cooled
    26. Starting system: electric starters 24v dc, solenoid engagement or air
    27. Turbocharger: exhaust single vertical 8" flange at rear, and flexible stainless steel exhaust connection
    28. Vibration damper: viscous type, guard included with remote mounted radiator or no radiator
    29. Water circulating system, auxiliary circuit: for oil cooler and intercooler, for oil cooler pump is belt driven from crankshaft pulley
    30. Water circulating system, engine jacket: belt driven jacket water circulating pump, cluster type thermostatically temperature regulating valve, full flow bypass type, flange connections and matting flanges for 4" inlets and (1) 5" outlet
  3. Condition
    1. Zero-hour rebuilt
  4. Included
    1. New remote electric radiator sized to cool units
    1. Quantity: 6
