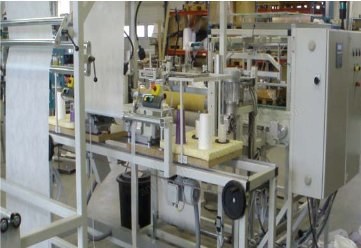

Kinna Automatic, Pillow Tick Machine, 12 pcs/min, 900x900mm Max, Pegasus Sewing Head

Description

Overview
1. Pillow tick long and cross side sewer: two rolls of material are fed into the machine where the right and left sides are overlock sewn together on the long sides.
2. The material is then fed into the measuring station and an overlock sewing machine sews and cuts the material at the same time.
3. The finished pillow ticks are stacked onto a conveyor.
Technical Specifications
1. Production rate: 12 pieces per minute.
2. Minimum pillow size: 400 mm x 400 mm.
3. Maximum pillow size: 900 mm x 900 mm.
4. Sewing head: Pegasus.
5. Compressed air supply: dried and a minimum of 6 bar pressure.
6. Control system: Mitsubishi PLC.
