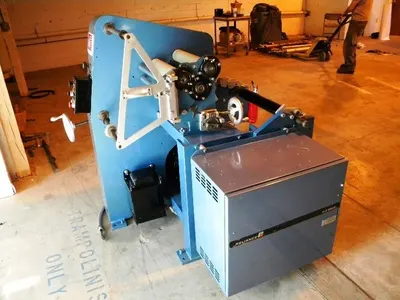

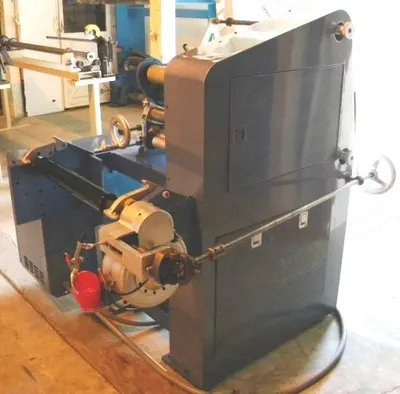

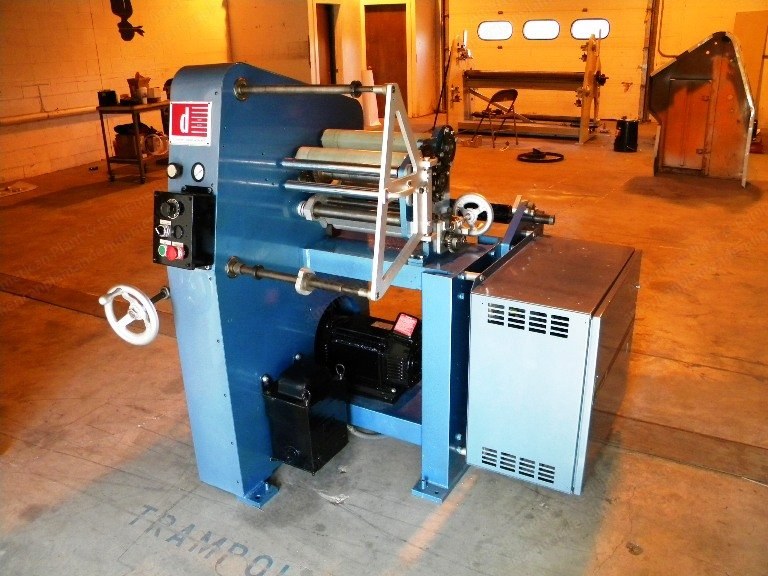

Dusenbery, Model 633 CJ, Slitter, 18 inch Max Rewind Diameter, 32 inch Unwind Diameter, 230V
Scroll to zoom
100%
Description
Overview
62 inch wide duplex rewind with core spacer differential rewind tension control
All slit rolls have individual tension control
Maximum rewind diameter of 24 inches without top riding rolls, 21 inches with top riding rolls
Maximum speed is 500 fpm
Equipped with a 32 inch diameter integral unwind with Fife P-50 automatic edge guide control for edge guiding and a standard pneumatic air cooled brake
3 inch unwind shaft
3 inch rewind mandrels
Cork covered pull rolls
Shear slitting can be added if required
Drive System
7.5 hp DC motor and a main drive controller
Tension Control
Four zone individual tension control
Can run four different slit widths at the same time
Condition
Level 3 rebuild comes with new paint
