Major usage: metalize an aluminium coating on roll plastic films such as PET, CPP, OPP, PVC and PE.
Main applications of metallized materials include clothing, packaging, printing, security and electronic industry.
Main Applications
Flexible packaging for the food industry: chips, biscuits and bakery products, candies and confectionery, coffee, tea, chocolate bars, liquid packaging, soups, cereals, microwavable food, high barrier film.
Decoration: gift wrapping, labels, hot stamping foils, holograms.
Diversified technical and consumer products: metallic yarn for the textile industry, solar control film for architectural and automotive industry, security and anti-counterfeiting (holograms), capacitor film, shielding for electrical cable/shielded packaging for electronic.
Main Features
High-precision AC frequency conversion drive to adjust the speed in winding system, providing stable running, high speed, no scratch on original film, no wrinkle and orderly winding ends.
Excellent digital tension control system with constant tension, constant linear speed and rapid running.
Powerful pumping groups with high pumping speed and PLC control system.
Large power in evaporation system for aluminium with high metallization efficiency and good uniformity for the coating.
Aluminium system can be adjusted total or single.
Aluminium system moveable for ease of cleaning and maintenance.
Technical Data

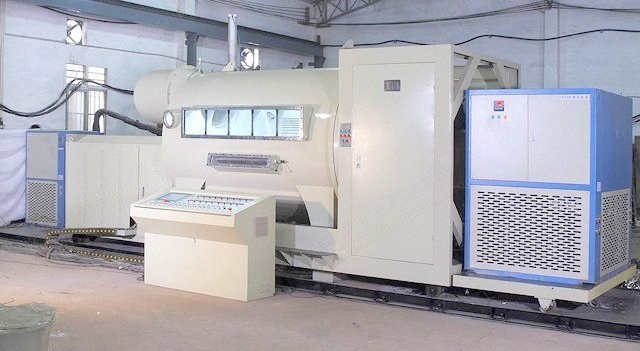

Model: CN102
Diameter of chamber: CN102 mm
Max. web dia.: 1000 mm
Boats: 12 to 24 piece
Wire-feeding speed: 0 to 5 m/min
Work power: 180 to 320 kW
Winding speed: 100 to 600 m/min
Occupied area: 16000 x 14000 x 4800 mm
