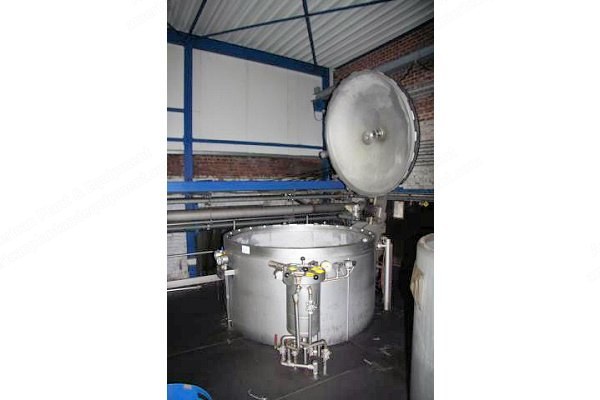

Jasper/Thies, Vertical HT Double Yarn Dyeing Machine, 2001, 2x 100kg Capacity, 2x 800mm Diameter, 140 deg C

Jasper/Thies, Vertical HT Double Yarn Dyeing Machine, 2001, 2x 100kg Capacity, 2x 800mm Diameter, 140 deg C

Description

  1. Overview
    1. Diameter: 2 x 800 mm
    2. Maximum capacity: 2 x 100 kg
    3. Maximum temperature: 140 °C
    4. Maximum pressure: 4.5 bar
    5. Power: 3 x 400 V
    6. Year: 2000
  2. Control And Software
    1. Software: Mitsubishi PLC
    2. Electrical control box year: 2001
  3. Construction And Features
    1. Pneumatic opening cover
    2. Thermal insulation
    3. 12 material carriers
    4. Diameter: 197 mm
    5. 140 bobbins 6 inches
    6. 42 bobbins 10 inches
  4. Additional Equipment
    1. One additional tank, diameter 900 mm, 1000 L
    2. Flow and differential pressure regulation
    3. Vacuum dewatering system
