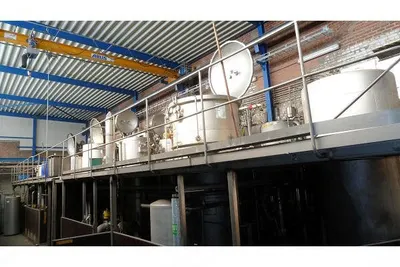

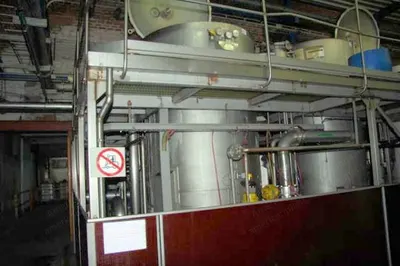

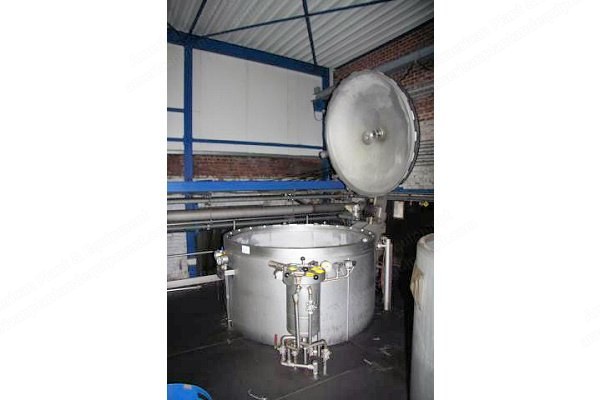

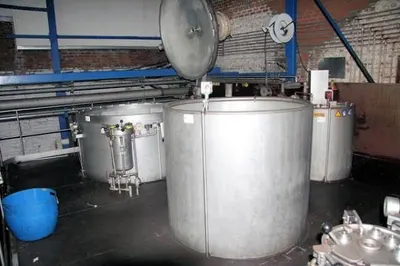

Jasper/Thies, Vertical Yarn Dyeing Machine, 1987, 600kg Capacity, 1400mm Diameter, 130C Max Temp

Jasper/Thies, Vertical Yarn Dyeing Machine, 1987, 600kg Capacity, 1400mm Diameter, 130C Max Temp

Description

  1. Overview
    1. Diameter: 1400 mm
    2. Maximum capacity: 600 kg
    3. Maximum temperature: 130 °C
    4. Maximum pressure: 3.9 bar
    5. Power: 3x400 V
    6. Year: 1987
    7. Software: Mitsubishi/Telemecanique PLC 2007
  2. Tanks
    1. Preparation tank diameter: 1100 mm, 3900 L
    2. 2 additional tanks with stirrer: 1000 L each
  3. Features
    1. Pneumatic opening cover
    2. Thermal insulation
    3. 2 material carriers
    4. Flow and differential pressure regulation
    5. Vacuum dewatering system
  4. Material Carriers
    1. Diameter: 197 mm (1 in service + 1 in reserve)
    2. For 252 bobbins of 6 inches
    3. And 144 bobbins of 10 inches
