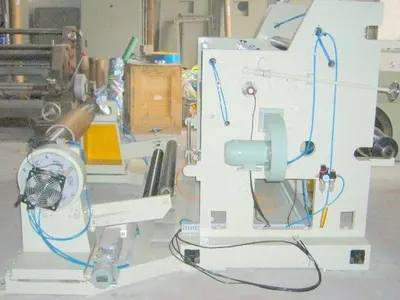

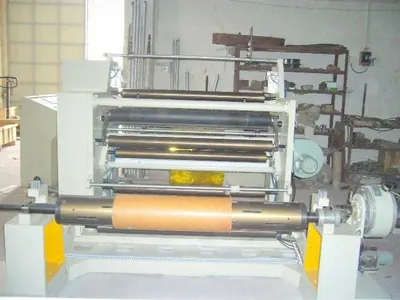

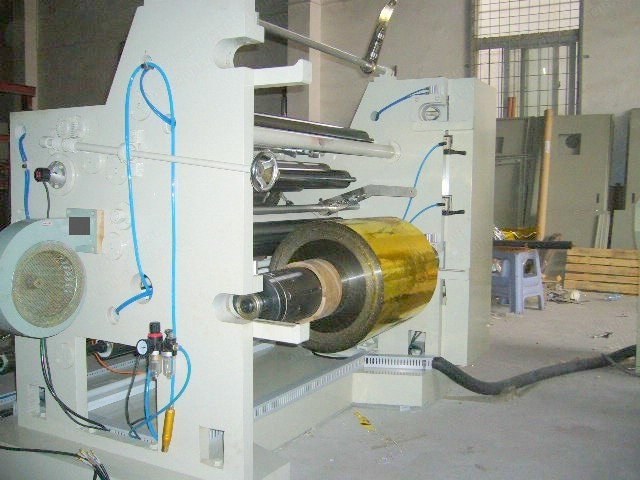

NovaStar, SR176, Photoelectric Auto Slitting Machine, 1600mm Max Material Width, 180 m/min, 5 kW
Scroll to zoom
100%
Description
Overview
High precision new generation slitting equipment integrated with light, electricity and mechanism
Equipped with photoelectric auto-rectification device, electromagnetism brake and clutch
Horizontal revolving reel and the material shaft are on the same side for easy operation
Winding mode adopts sole-winding structure, and the receive roller adopts air-inflation roller (mechanism shaft)
With auto-meter counter
Working speed of machine is controlled with imported transducer, all the control buttons are installed on the separate control panel for easy operation
Specifications
Type: SR176
Max diameter of material: 600 mm
Max width of material: 1600 mm
Max diameter of products: 400 mm
Width of products: 50 to 1650 mm
Speed of slit: 0 to 180 m/min
Total power: 5 kW
Outside dimensions (L x W x H): 1250 x 2650 x 1350 mm
