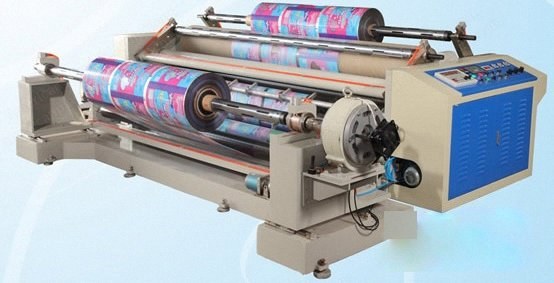

NovaStar, SR177, Surface Rewinding and Slitting Machine, 2020mm Max Width, 800mm Max Diameter, 200 m/min (New)

NovaStar, SR177, Surface Rewinding and Slitting Machine, 2020mm Max Width, 800mm Max Diameter, 200 m/min

Description

  1. Overview
    1. Suitable for rewinding and slitting plastic films such as CPP, PET and metallized films
    2. Unwind tension controlled by magnetic powder brake, with tension sensor and tension controller
    3. With a photoelectricity tracking and correction device
    4. Equipped with an automatic meter counter
    5. Both rewind shaft and unwind shaft are pneumatic inflate shafts
    6. Pneumatic devices to control rewinding pressure
  2. Specifications
    1. Item: SR177
    2. Max. diameter of material: 800 mm
    3. Max. width of material: 2020 mm
    4. Max. diameter of rewind: 800 mm
    5. Slitting width: 50 to 2000 mm
    6. Slitting speed: 10 to 200 m/min
    7. Total power: 6.5 kW
    8. Outsize (L x W x H): 2100 x 3100 x 1250 mm
