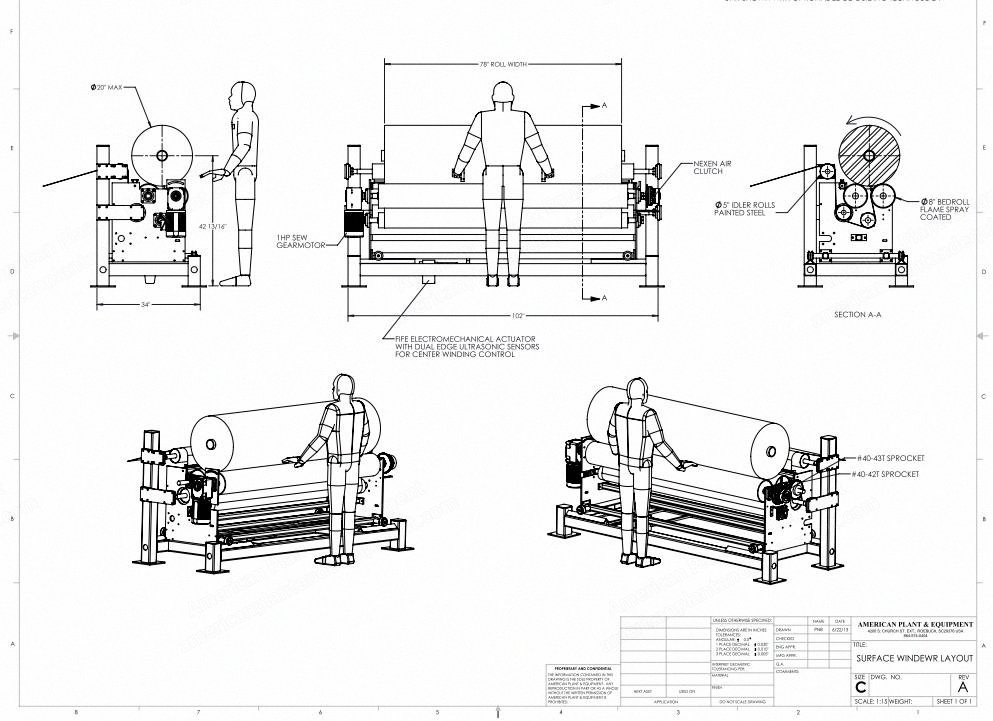

Surface Winder, 2000mm Width, Fife Edge Guiding System, 1hp (New)

Surface Winder, 2000mm Width, Fife Edge Guiding System, 1hp

Description

  1. Overview
    1. Surface winder for technical textile fabric
    2. 2000 mm wide
    3. Flame sprayed surface winding rolls for heavy duty grip
    4. Air clutch ties the two rolls together for tight roll building
  2. Specifications
    1. Fabric weight: 500 to 1500 gsm
    2. Fabric thickness: 1/16 in to 1/4 in (1.6 mm to 3.2 mm)
    3. Core diameter: 3 in
    4. Core material: cardboard
    5. Core wall thickness: 1/4 in (3 mm)
    6. Wound roll diameter: 20 in (500 mm)
  3. Included Equipment
    1. Fife edge guiding system with Fife controller
  4. Notes
    1. Without the edge guiding system, the unit would have a smaller frame and be lower to the ground
