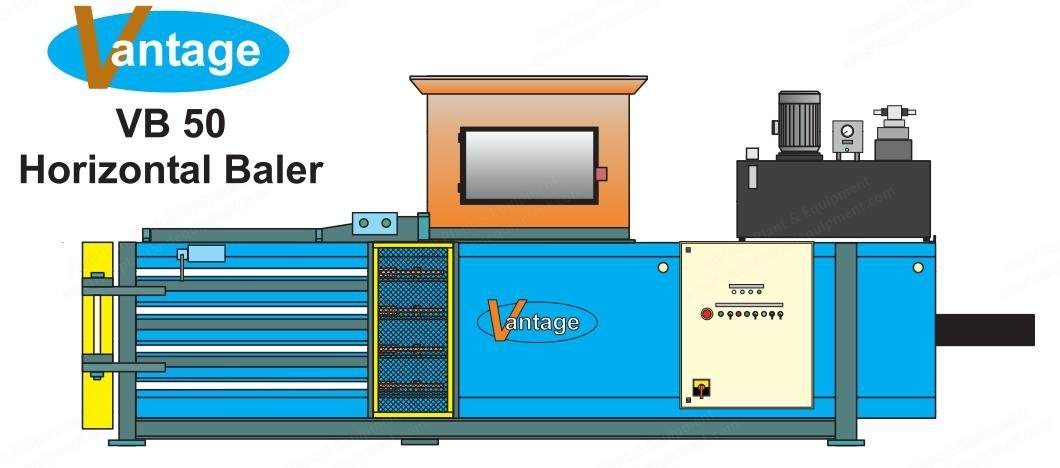

Vantage, VB 50, Horizontal Baler, 1600mm Width, 40-50 Ton Ram Force, 11-15kW

Vantage, VB 50, Horizontal Baler, 1600mm Width, 40-50 Ton Ram Force, 11-15kW

Description

  1. Overview
    1. Vantage VB 50 horizontal baler, 1600 mm
  2. Specifications
    1. Bale size: 1000 x 1100 x 1200 mm long
    2. Bale weight: up to 500 kg (typical for paper/board)
    3. Throughput: 2000 kg/hour (dependent on material and feed method)
    4. Bale tying: 5 wire manual tie
    5. Feed hopper: 1000 to 1200 mm long x 1000 mm wide
    6. Ram force: 40-50 tonne
    7. Hydraulic drive: 11-15 kW
    8. Length: 6640 or 6840 mm
    9. Width: 1600 mm
    10. Height (hopper): 1860 mm
    11. Machine weight: 5 tons
    12. Electrical supply: 415 V, 3 phase, 50 Hz
