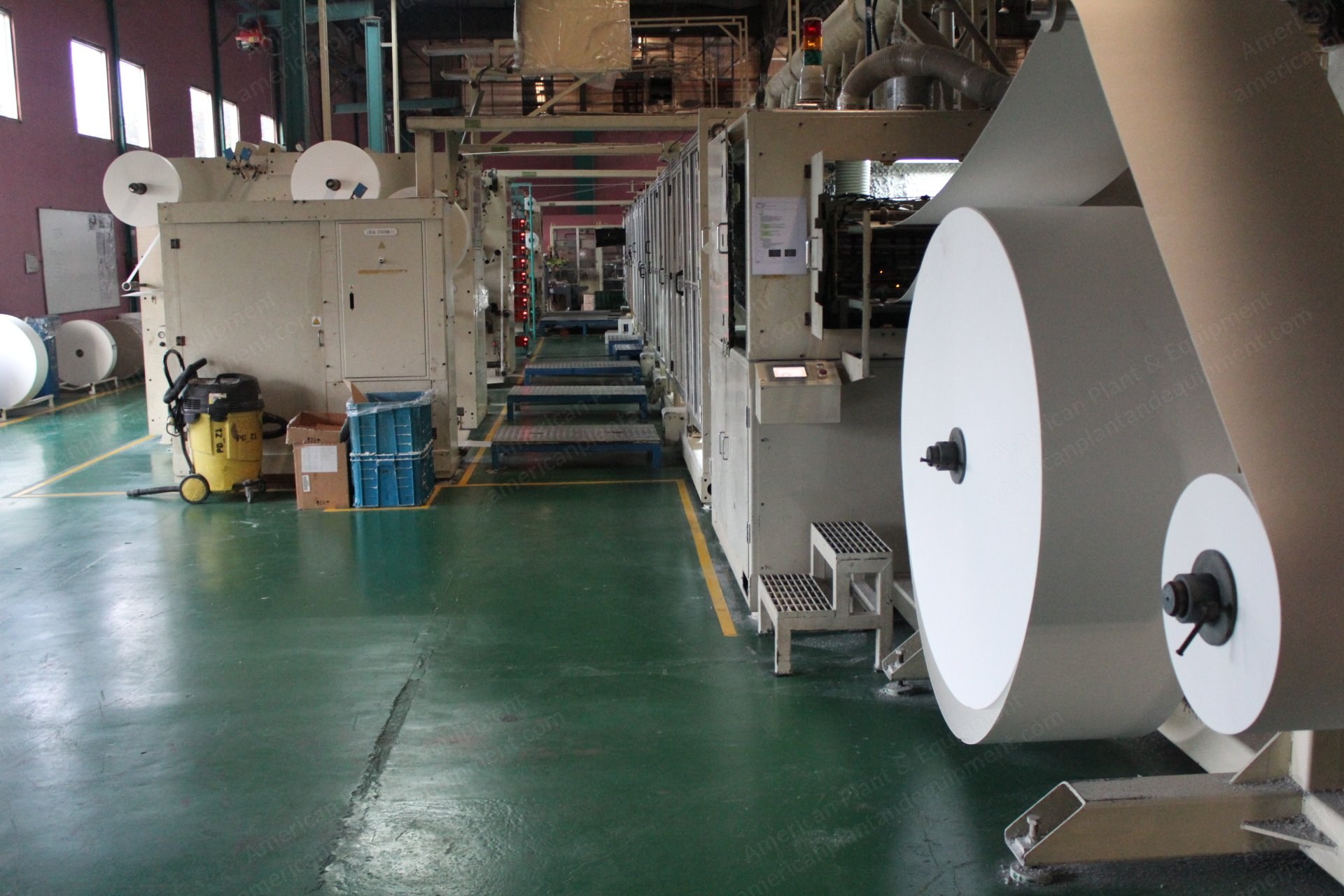

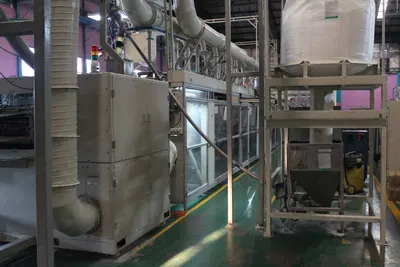

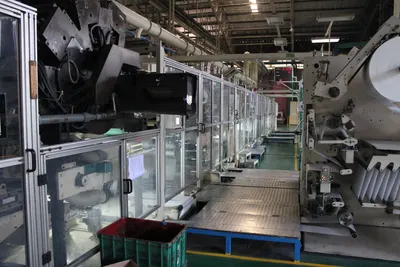

Description Overview Output speed: 375 pcs/minute Product type: Diaper plant Z H shape Product size: M, L, XL Machine overall size: 27.5 m x 8.5 m x 2.3 m Power And Electrical Power consumption: 300 kW, 3 phase, 400 V Forming Specifications Forming capacity: 300 g/m² to 400 g/m Forming pattern: Shaped flat intermittent pattern Pulp Hanger Location: Off line (MD direction) Handling roll dimension: max. 1500 mm outer diameter, 3 in core diameter and 20 in width Drive: Non driven Core chucking: Mechanical (with set collar) Detector: Roll expiring detection Transfer Layer Unwinder Location: Off line (CD direction) Handling roll dimension: max. 1000 mm outer diameter, 3 in core diameter and 75 mm width Drive: Core drive by servomotor (Mitsubishi) Accumulation: Festoon rolls Roll weight: kg/roll Core chucking: Pneumatic Auto splicing: Zero speed splice Detector: Roll expiring detection, run out detection, maker splice detection Barrier Film Unwinder Location: Off line (CD direction) Handling roll dimension: max 600 mm outer diameter, 3 in core diameter and 19 mm width Drive: Belt surface driven by servomotor (Mitsubishi) Accumulation: Festoon rolls Roll weight: ---- kg/roll Core chucking: Pneumatic Auto splicing: Zero speed splice Detector: Roll expiring detection, run out detection, maker splice detection Cover Unwinder Location: Off line (CD direction) Handling roll dimension: max. 1000 mm outer diameter, 3 in core diameter and 285 mm width Drive: Belt surface driven by servomotor (Mitsubishi) Accumulation: Festoon rolls Roll weight: --- kg/roll Core chucking: Pneumatic Auto splicing: Zero speed splice Detector: Roll expiring detection, run out detection, maker splice detection Cuff Construction Spreading guide Coated cuff folding compression roll Cuff w-folding feature Cuff Elastic Unwinder Location: Off line (CD direction) Drive: Unwind roll drive by servomotor (Mitsubishi) Draw control: By servomotor Handling roll dimension: max diameter 280 mm, max width 4 in Number of handling rolls: 8 rolls Detector: Roll expiring detector and elastic break detector Top Sheet Unwinder Location: Off line (CD direction) Handling roll dimension: max 1000 mm outer diameter, 3 in core diameter and 135 mm width Drive: Belt surface drive by servomotor (Mitsubishi) Accumulation: Festoon rolls Roll weight: --- kg/roll Core chucking: Pneumatic Auto splicing: Zero speed splice Detector: Roll expiring detection, run out detection, maker splice detection Inner NW Unwinder Location: Off line (CD direction) Handling roll dimension: max. 1000 mm outer diameter, 3 in core diameter and 285 mm width Drive: Belt surface drive by servomotor (Mitsubishi) Accumulation: Festoon rolls Roll weight: --- kg/roll Core chucking: Pneumatic Auto splicing: Zero speed splice Slitter: Dienes Detector: Roll expiring detection, run out detection, maker splice detection Outer NW Unwinder Location: Off line (parallel frame) Handling roll dimension: max 1000 mm outer diameter, 3 in core diameter and 625 and 640 mm width Drive: Belt surface drive by servomotor (Mitsubishi) Accumulation: Festoon rolls Roll weight: --- kg/roll Core chucking: Pneumatic Auto splicing: Zero speed splice Detector: Roll expiring detection, run out detection, maker splice detection Printed Sheet Unwinder Location: Off line (CD direction) Handling roll dimension: max 600 mm outer diameter, 3 in core diameter and 200 mm width Drive: Core drive by servomotor (Mitsubishi) Accumulation: Festoon rolls Roll weight: --- kg/roll Core chucking: Pneumatic Auto splicing: Zero speed splice Detector: Roll expiring detection, run out detection Pulp Fiberizer Capacity of fiberizing: 600 kg/h Saw mill shaft motor: 55 kW Type of mill: Zuiko standard saw mill with tungsten carbide chip Mill rotor pattern: Zuiko standard saw mill with tungsten carbide chip Sound enclosure: Zuiko standard box type sound enclosure
